Check the projection layout for LSC601WU-ST
Send the available distance between projector and screen, desired image size and proposed mounting position. A short-distance installation still needs a model-specific placement check. Share any room obstructions and existing screen details before confirming the setup.
AV enquiries across Jharkhand and West Bengal
Enquiries are welcome from individuals, homes, businesses, education, healthcare, hospitality, retail, industry, NGOs and government across both entire states. Share quantity, intended use, budget, timeline and delivery PIN code. Exact model specifications, sourcing, availability, compatibility, accessories, delivery and installation feasibility are confirmed for each requirement.
Product enquiry on WhatsApp | Call 87952 51777 | Request an AV quotation

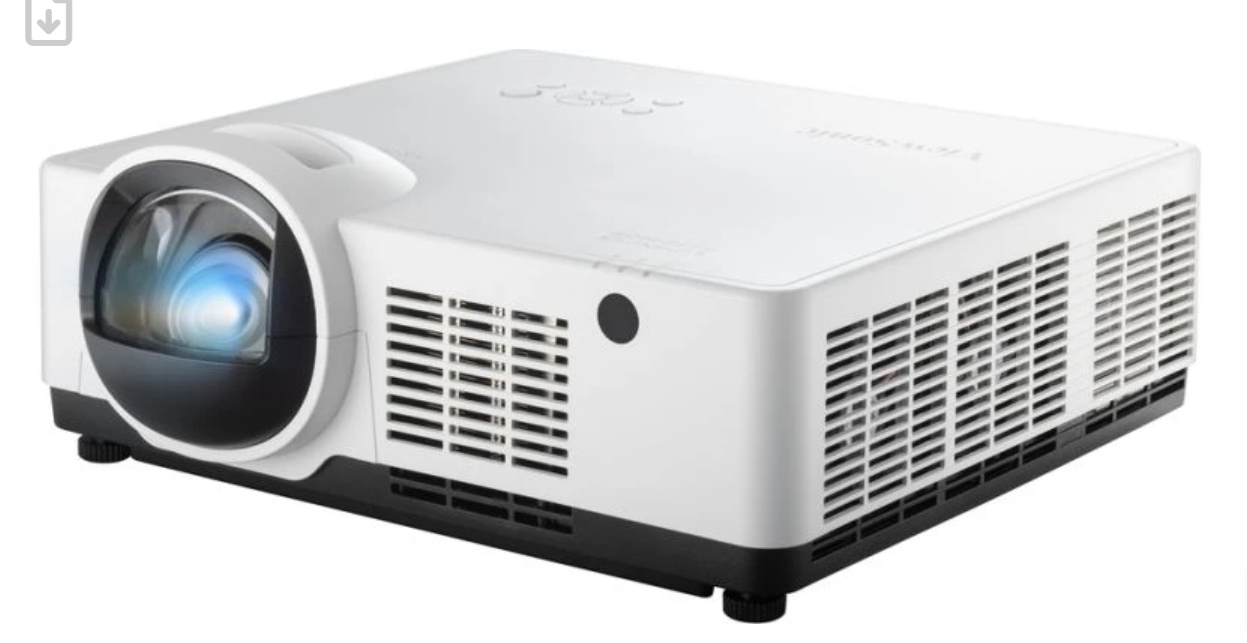

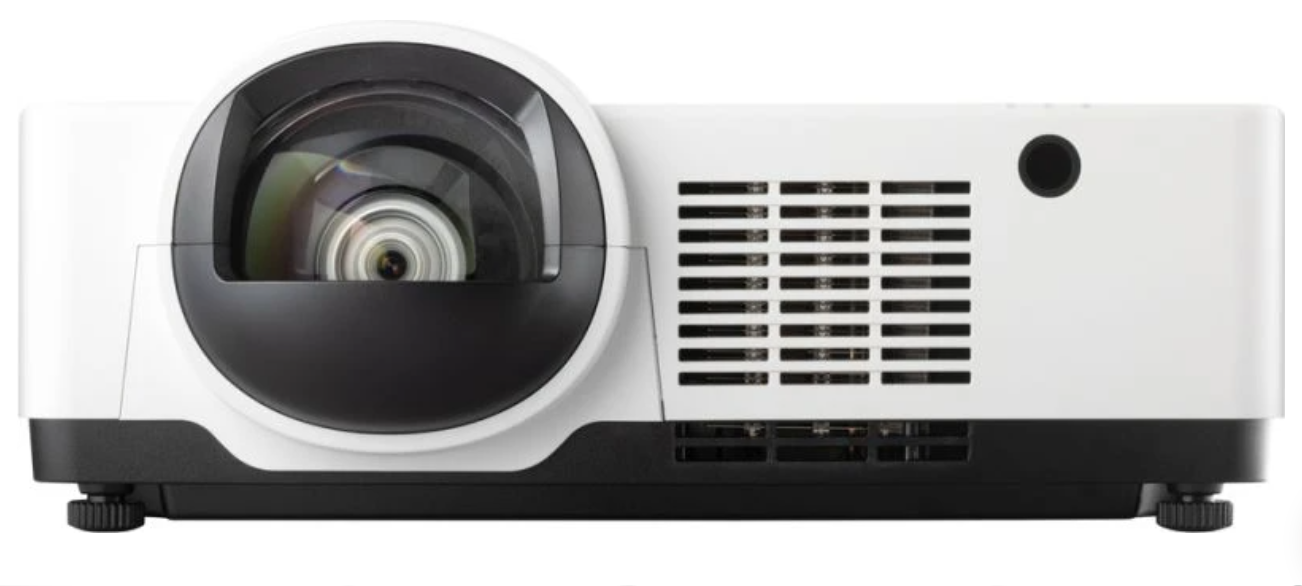

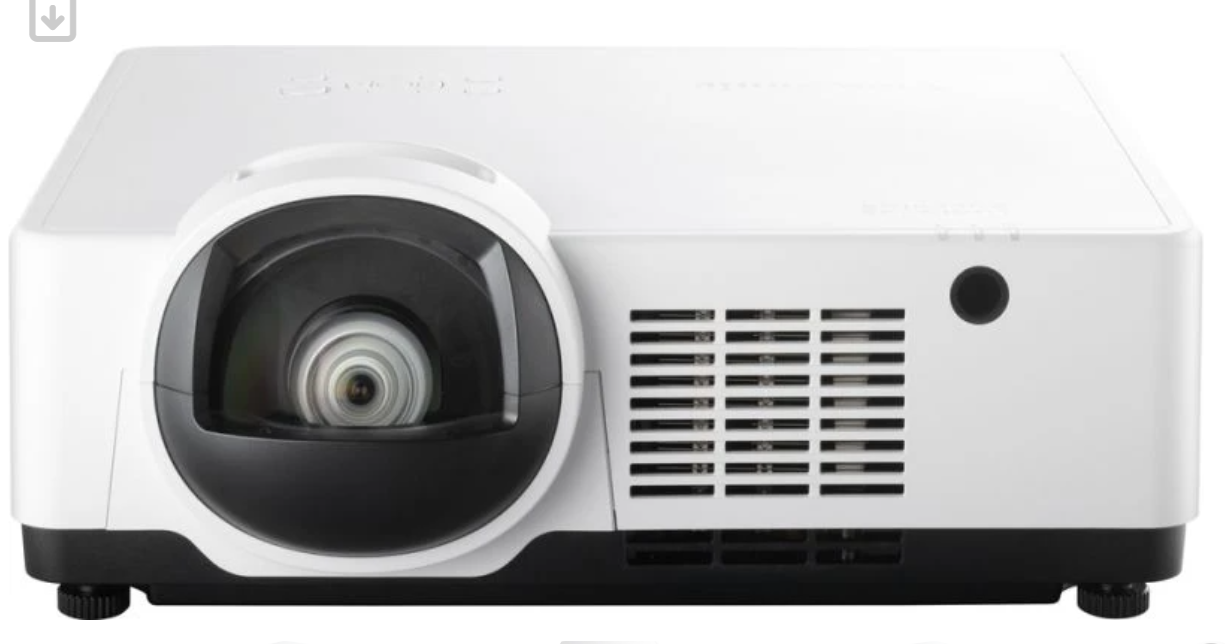

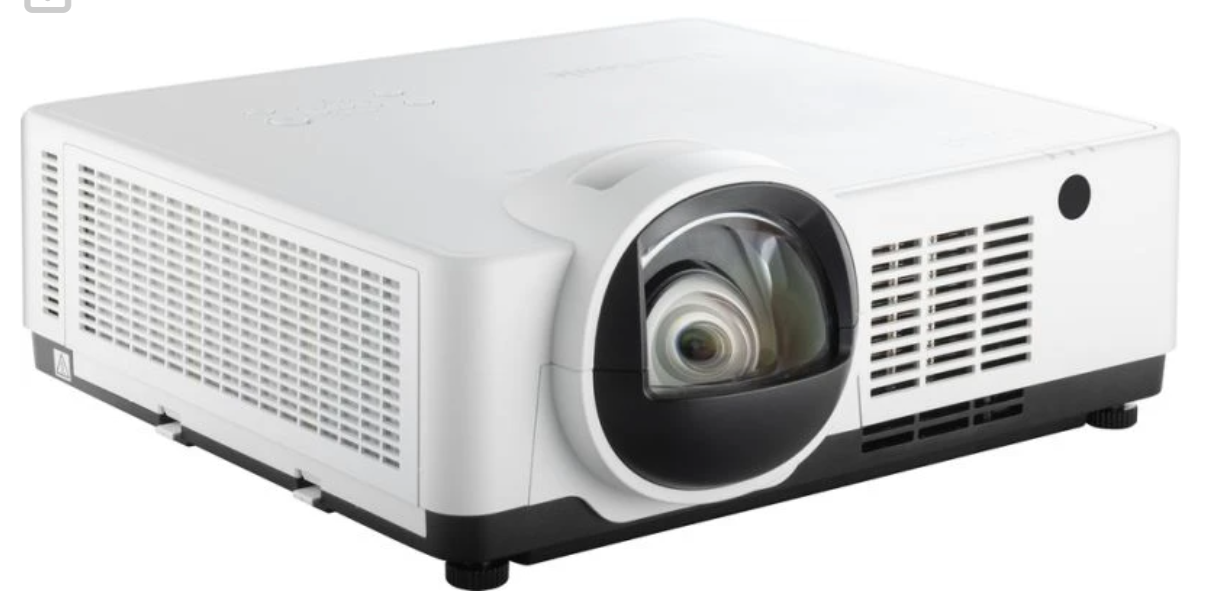

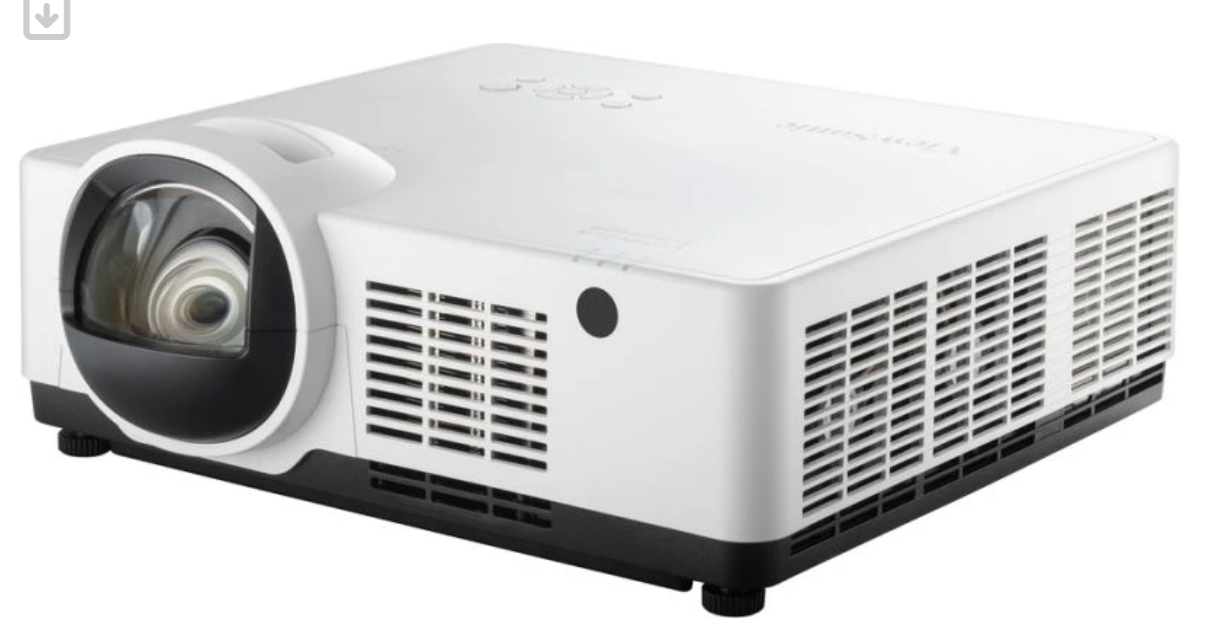

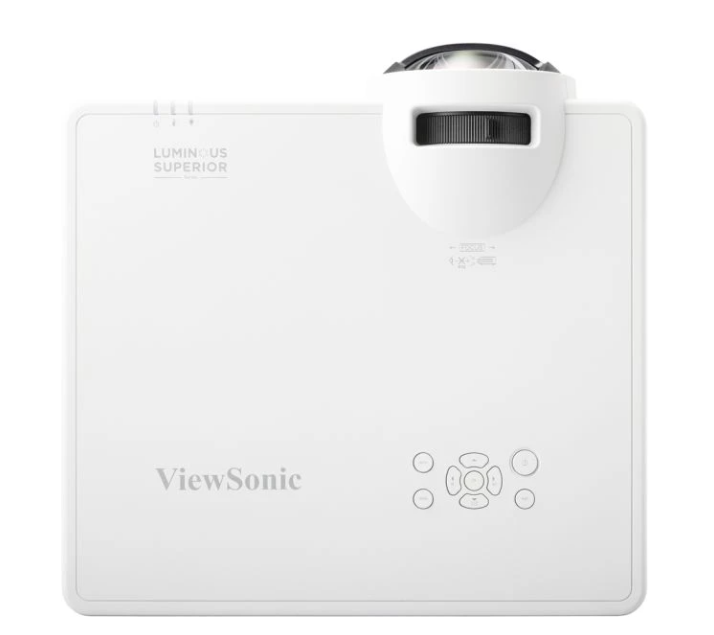

LSC601WU-ST
6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
- 6,000 ANSI Lumens offering bright images in any environment
- Up to a 180″ ultra-large screen with a lower cost-per-inch
- 0.44 short throw for seamless viewing experience without shadows
- Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: H/V keystone correction, 360° projection, and warping
- 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
- Centralized LAN control for efficient management
- Specification
Projection System: 3LCD (3×0.64″ with MLA)
Native Resolution: 1920×1200
Brightness: 6000 (ANSI Lumens)
Brightness (Center Lumens): 6500
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=1.6 f=6.39mm
Projection Offset: 98%+/-5%
Throw Ratio: 0.44
Optical Zoom: Fixed
Digital Zoom: 1.0x-4.0x
Image Size: 55″- 180″
Throw Distance: 0.521-1.71m
(100″@0.948m)
Keystone: H:+/-15° , V:+/-15°
Audible Noise (Normal): 35dB
Audible Noise (Eco): 25dB
Input Lag: 60ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-100KHz
Vertical Scan Rate: 23-85Hz - Input

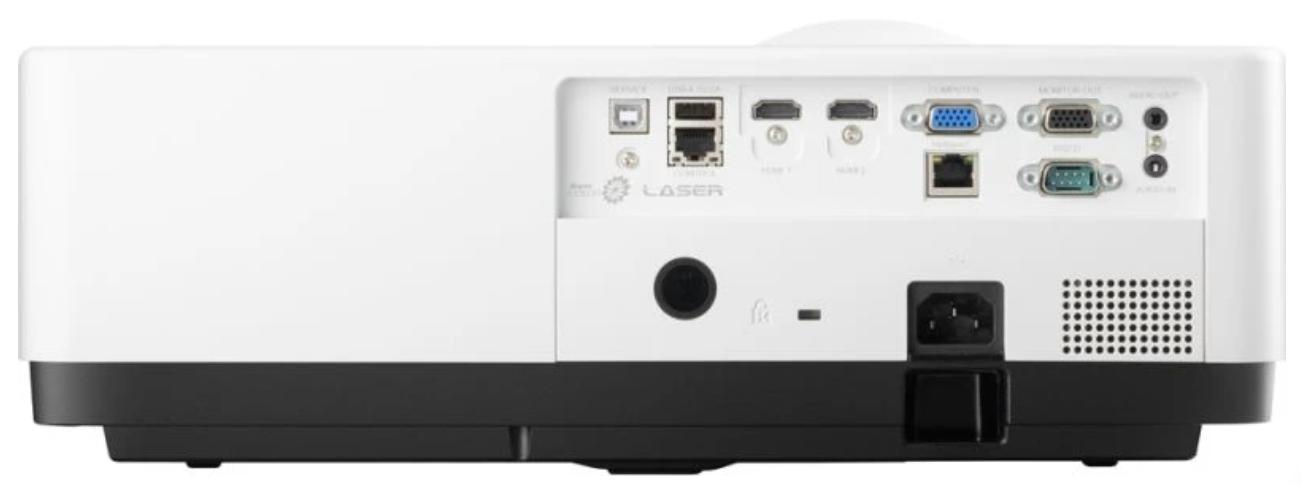

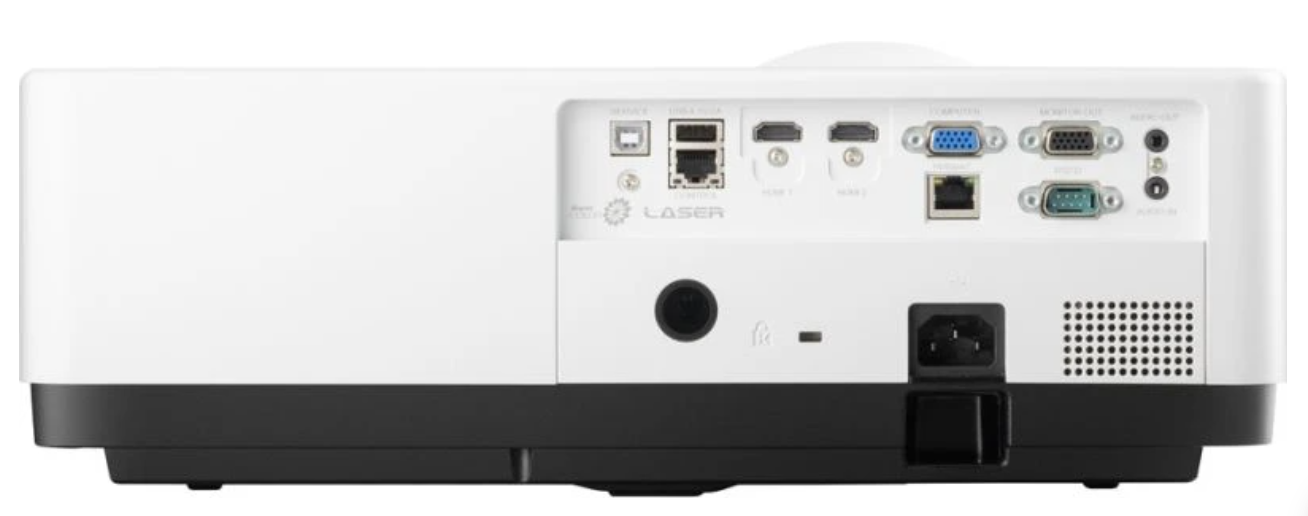

Computer in (share with component): 1
AV in (3.5mm): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
USB Type A: 1 (5V/2A)
HDBaseT: 1 - Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1
(USB2.0 – 5V/2A,
share with USB A Input)
- Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1 - Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 345W,
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 8.0kg
Gross Weight: 11.03kg
Dimensions (WxDxH) with Adjustment Foot: 405x404x164mm
Packing Dimensions: 510x498x260mm
OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory
Power Cord: 1

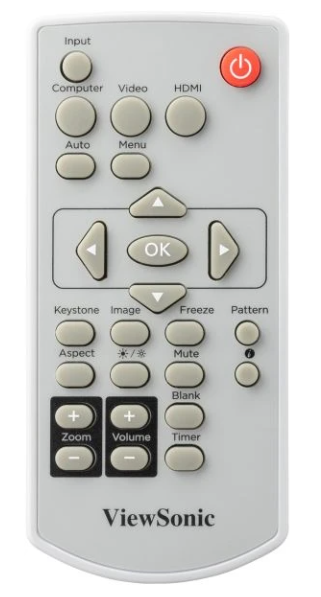

Remote Control: 1
QSG: Yes
Air Filter: Yes
Warranty Card: Yes (CN Only) - Optional Accessory
Air Filter: Yes
Wall/Ceiling Mount: PJ-WMK-007
