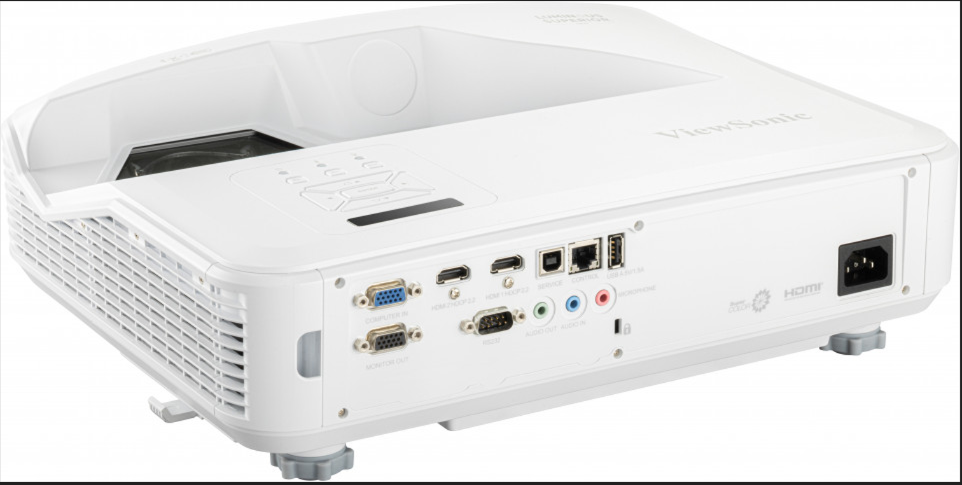

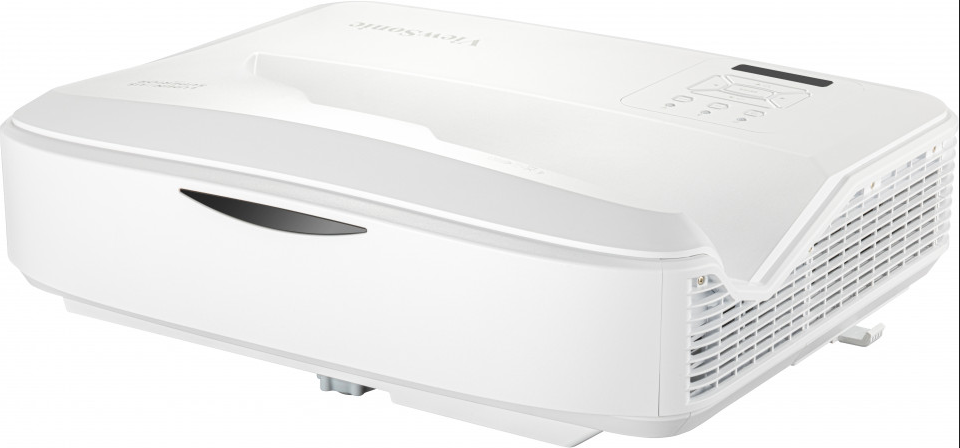

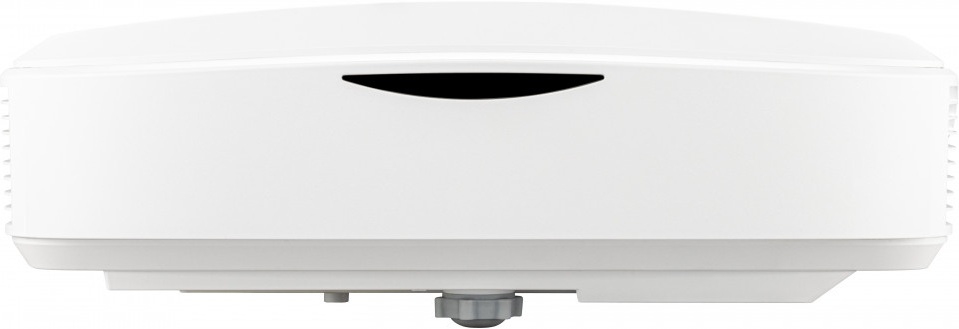

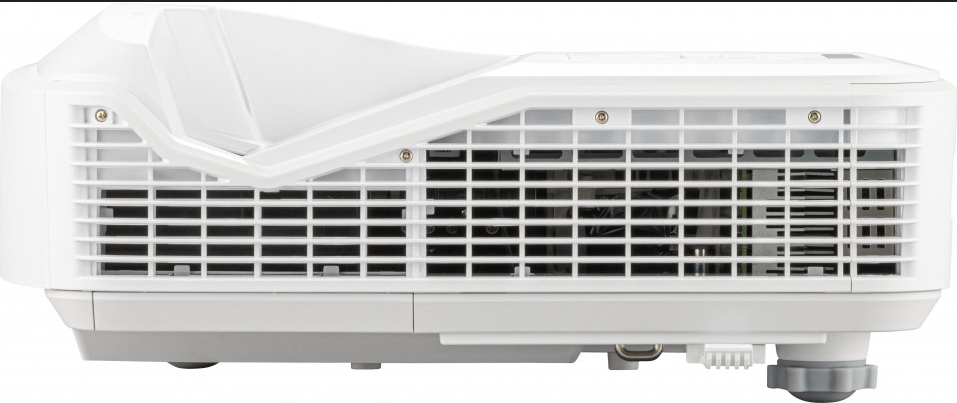

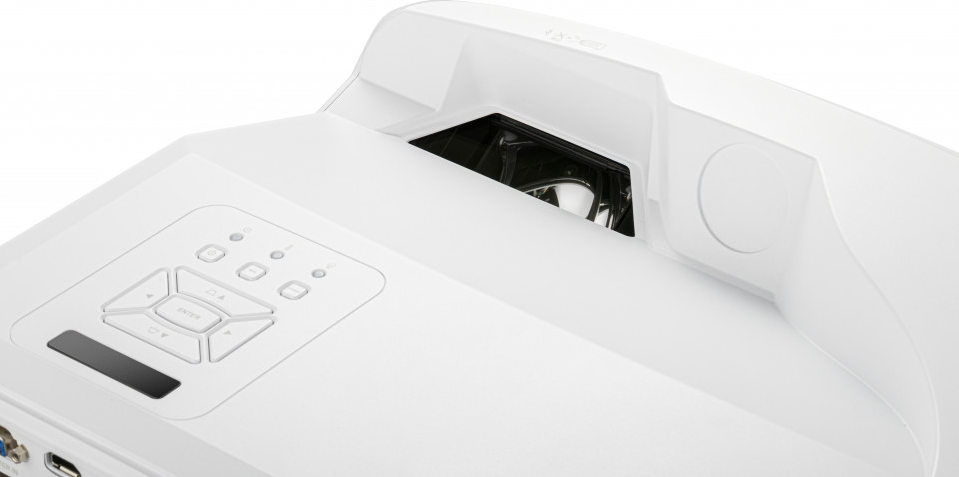

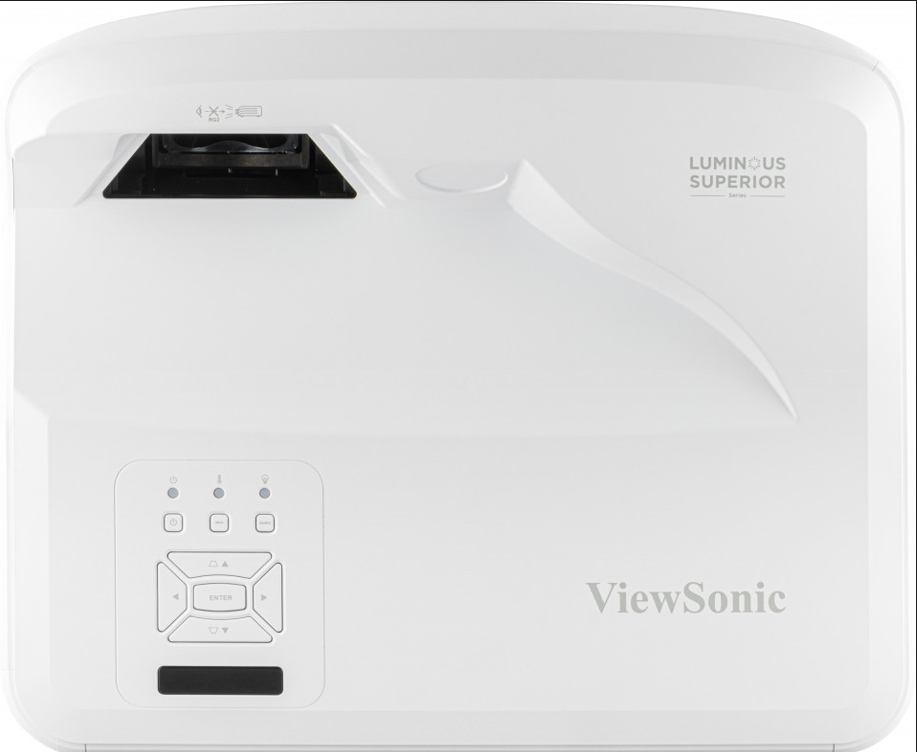

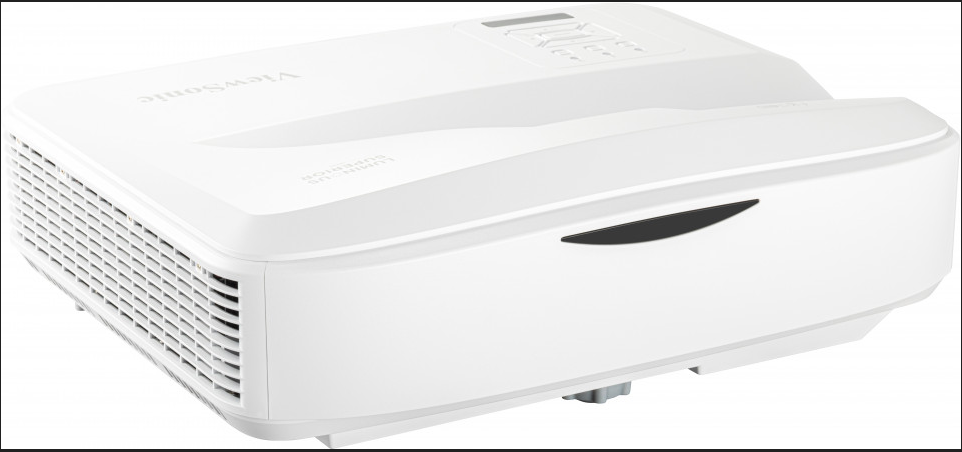

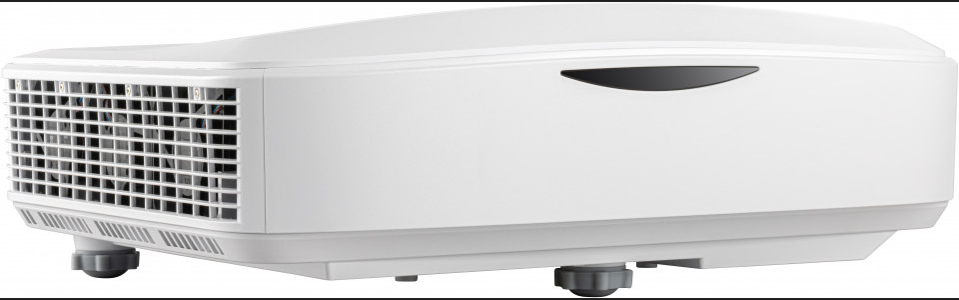

LS832WU
5,000 ANSI Lumens WUXGA Ultra Short Throw Laser Installation Projector
- 0.25 ultra short throw for space-saving installation
- 2nd generation Laser Phosphor technology with up to a 30,000-hour lifespan
- 5,000 ANSI Lumens offering bright images in any environment
- Up to 170″ ultra-large screen with lower cost-per-inch
- H/V keystone and 4 corner adjustment for enhanced installation flexibility
- Comprehensive LAN control providing efficient device management
- Specification
Projection System: 0.67″ WUXGA
Native Resolution: 1920×1200
Brightness: 5000 (ANSI Lumens)
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000
Lens: F=2.44, f=3.70mm
Projection Offset: 133%±3%
Throw Ratio: 0.253
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 80″- 170″
Throw Distance: 0.17-0.66m
(100″@0.28m)
Keystone: H:+/-10° , V:+/-10°
Audible Noise (Normal): 34dB
Audible Noise (Eco): 28dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K- 91KHz
Vertical Scan Rate: 24- 85Hz - Input

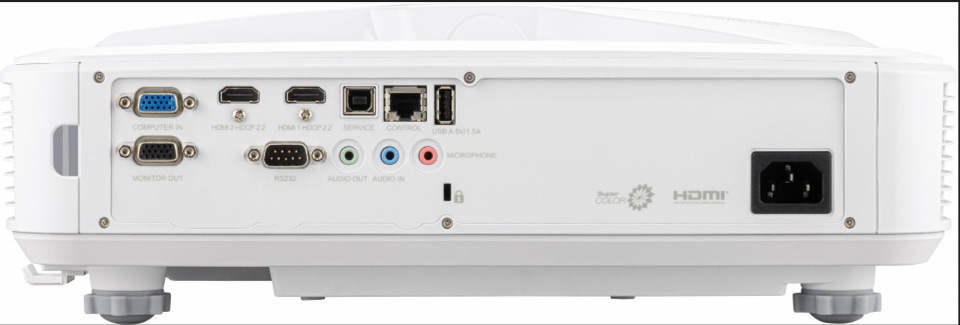

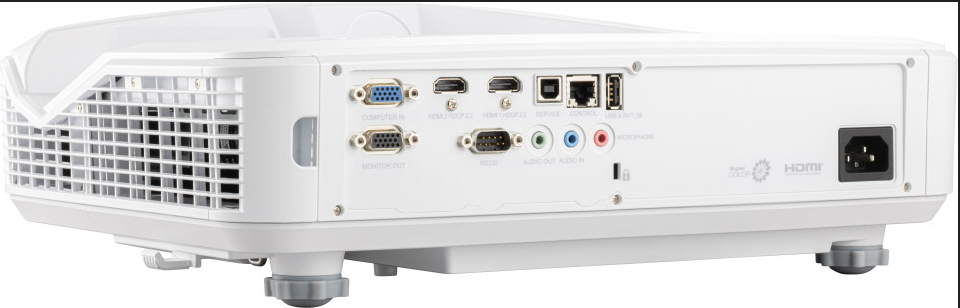

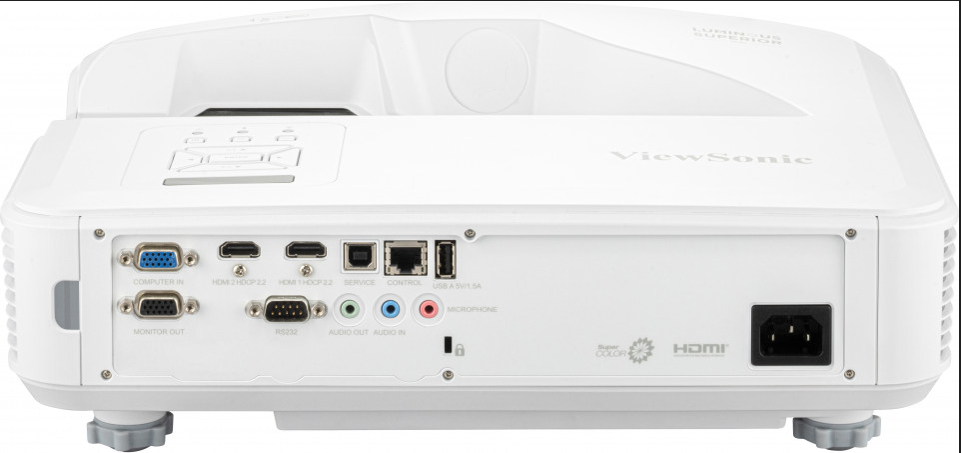

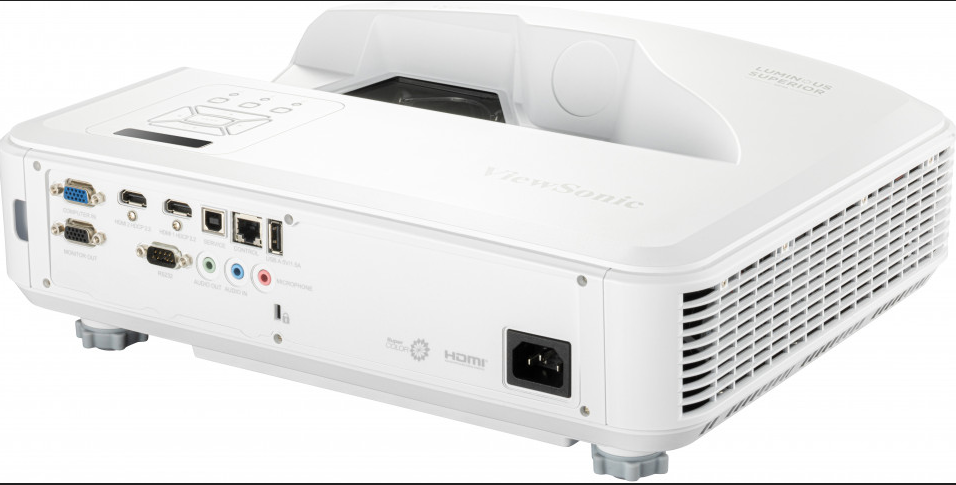

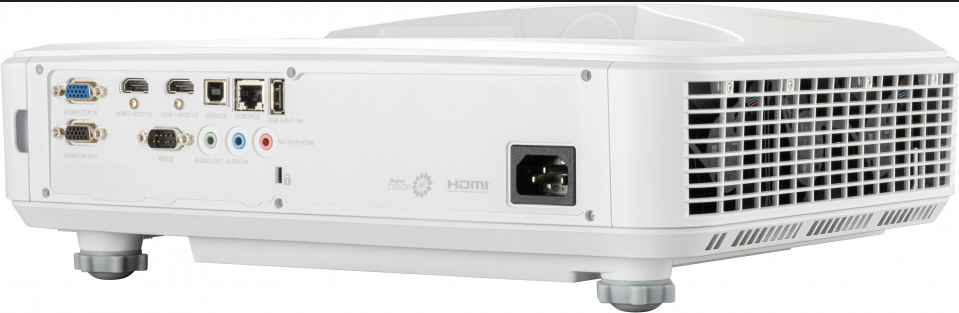

Computer in (share with component): 1
HDMI: 2
(HDMI 2.0/ HDCP 1.4/2.2)
Audio-in (3.5mm): 1
Microphone in: 1 - Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 10W x1
USB Type A (Power): 1 (5V/1.5A)
- Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1 - Features
24/7 Operation: Yes
IP5X Sealed design: Yes - Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 328W
Standby: <0.5W
Operating Temperature: 5~40℃
Carton: Brown
Net Weight: 5.8kg
Gross Weight: 8.1kg
Dimensions (WxDxH) with Adjustment Foot: 382x318x132mm
Packing Dimensions: 518x420x313mm
OSD Language: English, German, French, Italian, Spanish, Portuguese, Polish, Dutch, Swedish, Norwegian, Finnish, Greek, T Chinese, S Chinese, Japanese, Korean, Russian, Hungarian Czech, Arabic, Thai, Turkish, Farsi, Vietnam, Indonesian, Romania, Slovakian (27 language)
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory
Power Cord: 1

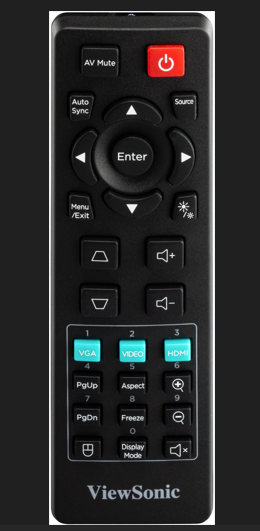

Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN Only) - Optional Accessory
Wall/Ceiling Mount: PJ-WMK-304
PJ-WMK-007
