Plan an LS950-4K projection system
Share venue dimensions, audience size, ambient lighting, target image size and content sources. If the project needs multiple displays or coordinated AV control, include the layout and operating requirements so compatibility and installation scope can be assessed.
AV enquiries across Jharkhand and West Bengal
Enquiries are welcome from individuals, homes, businesses, education, healthcare, hospitality, retail, industry, NGOs and government across both entire states. Share quantity, intended use, budget, timeline and delivery PIN code. Exact model specifications, sourcing, availability, compatibility, accessories, delivery and installation feasibility are confirmed for each requirement.
Product enquiry on WhatsApp | Call 87952 51777 | Request an AV quotation

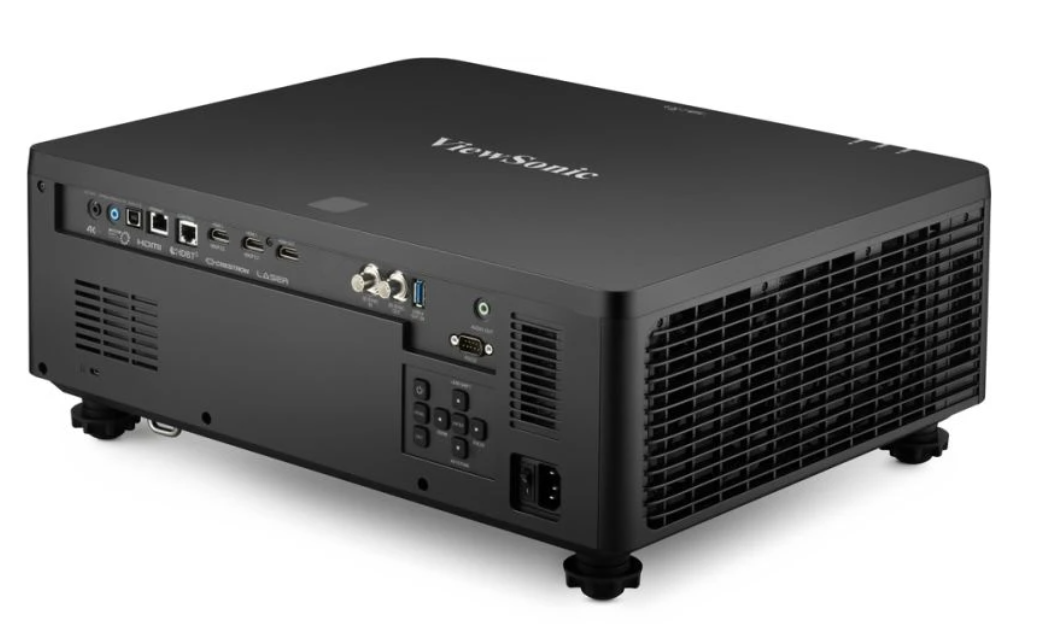

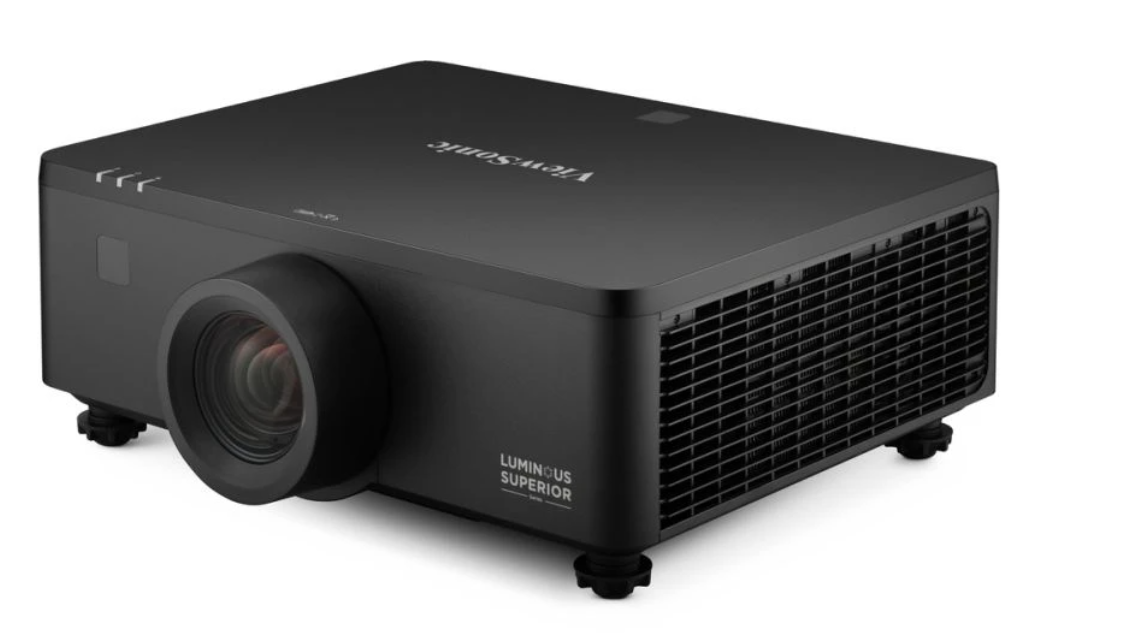

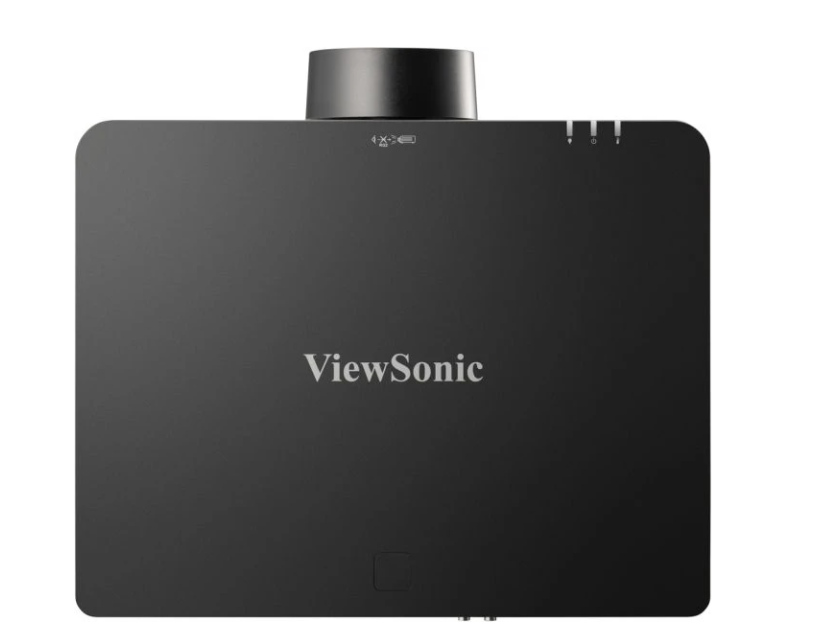

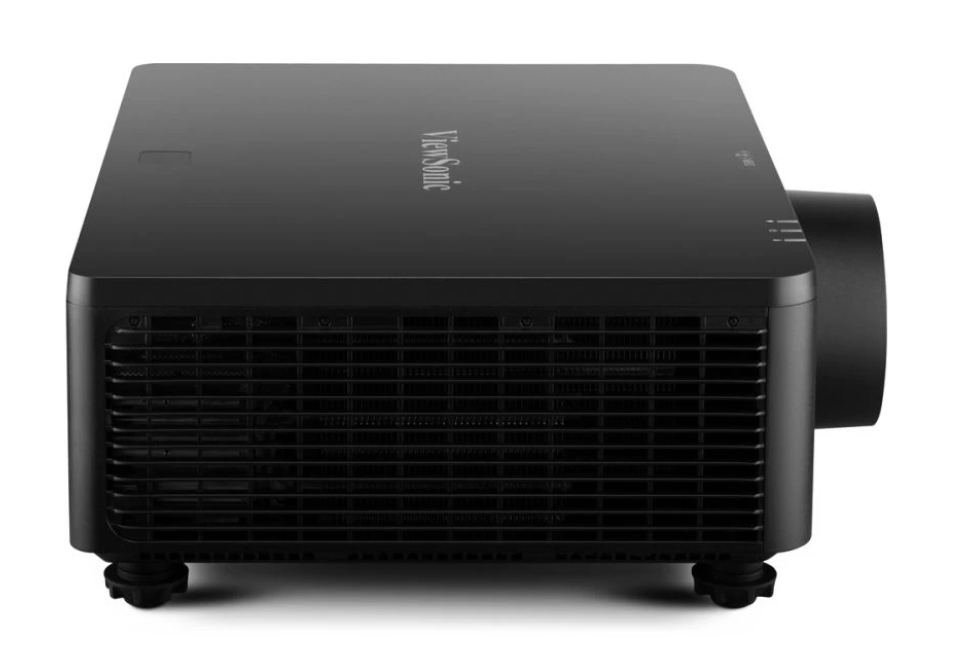

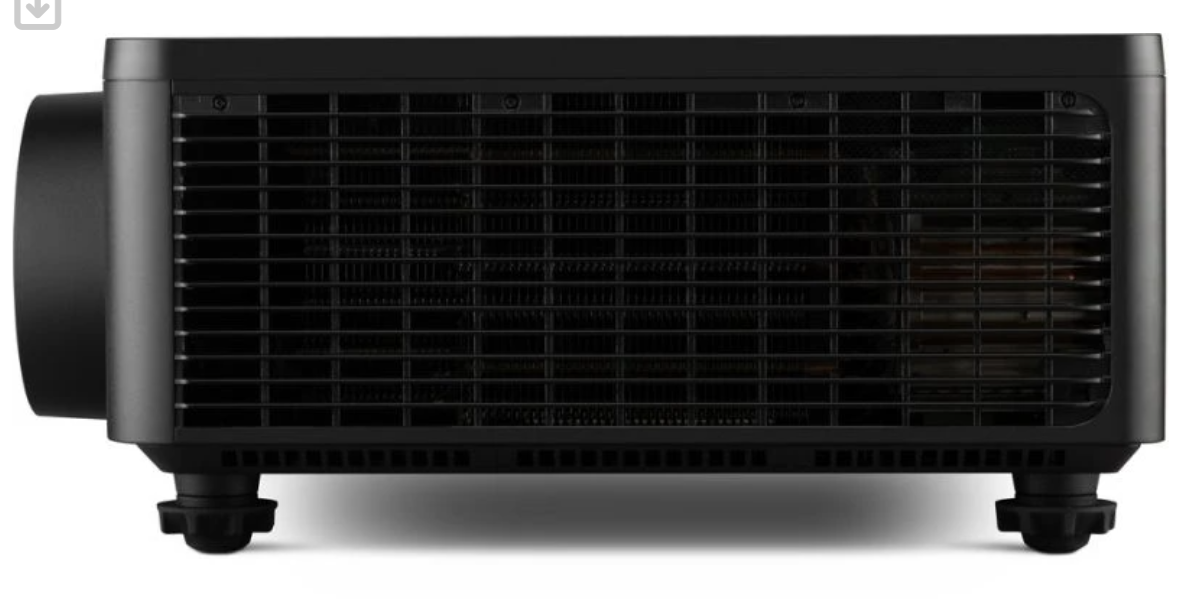

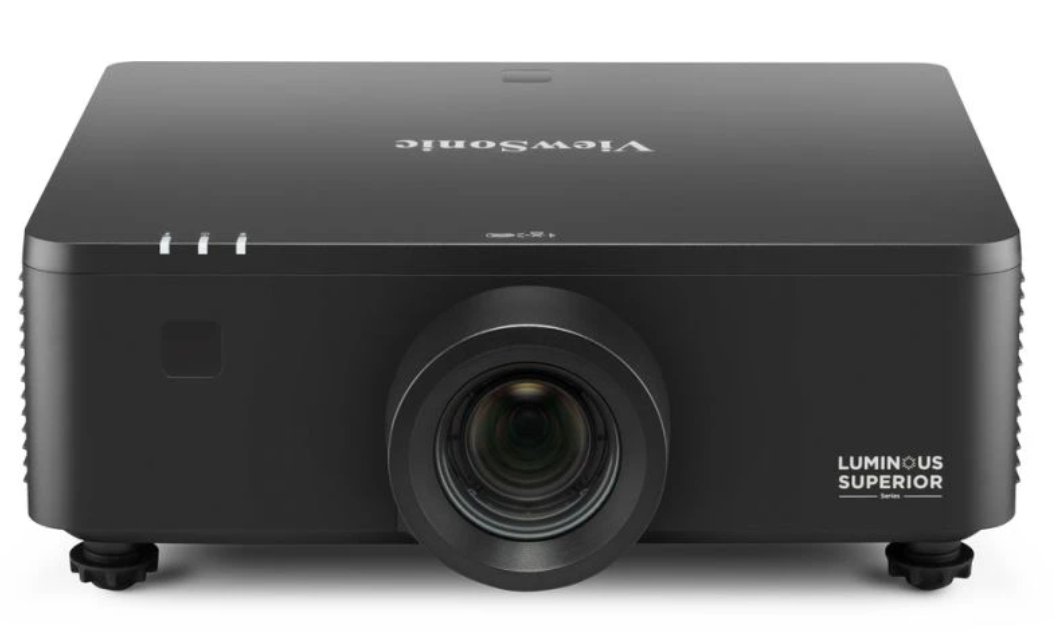

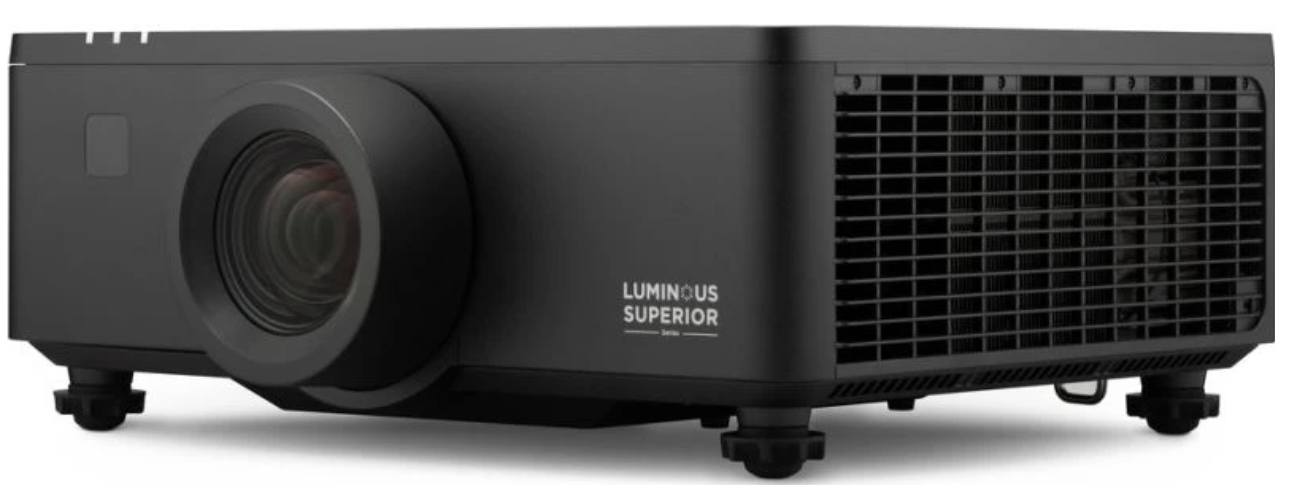

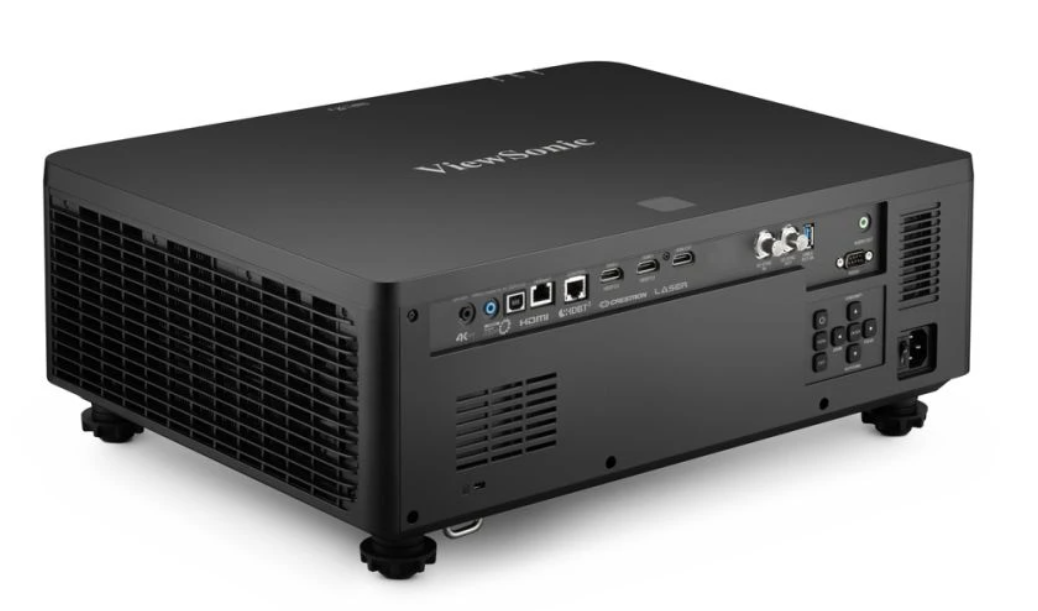

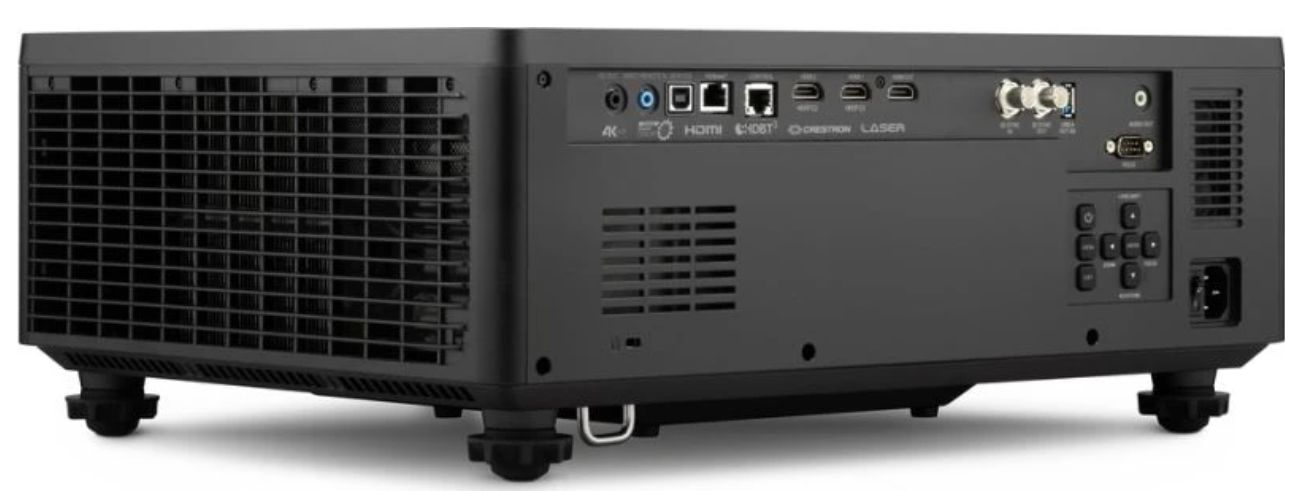

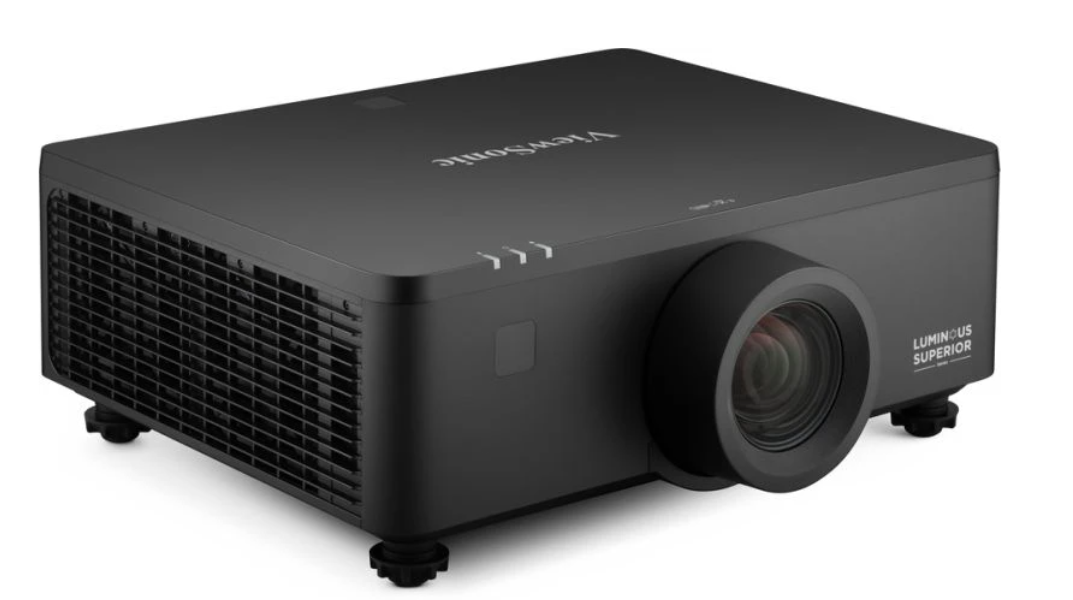

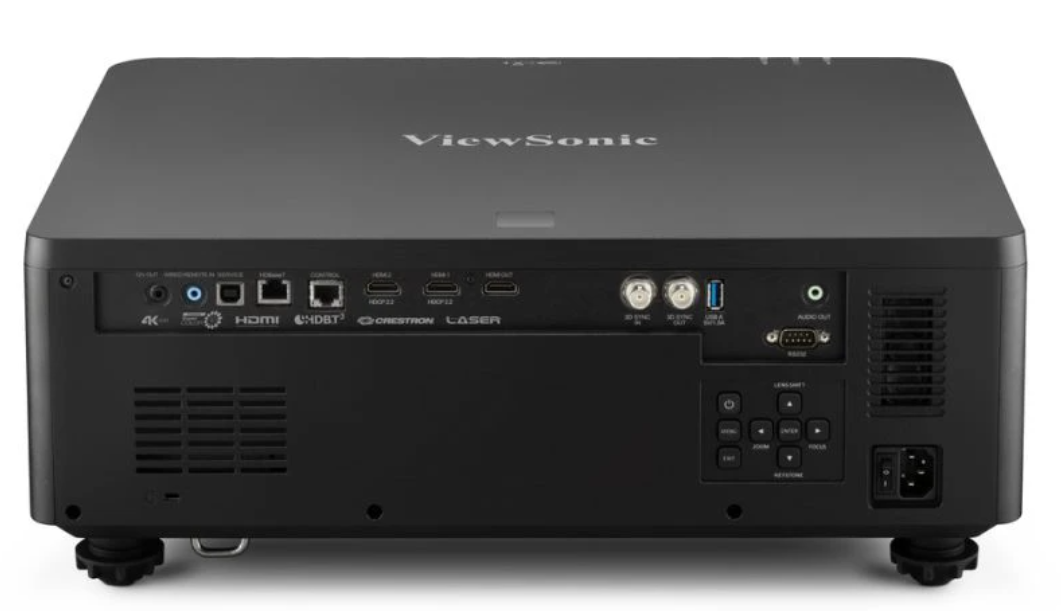

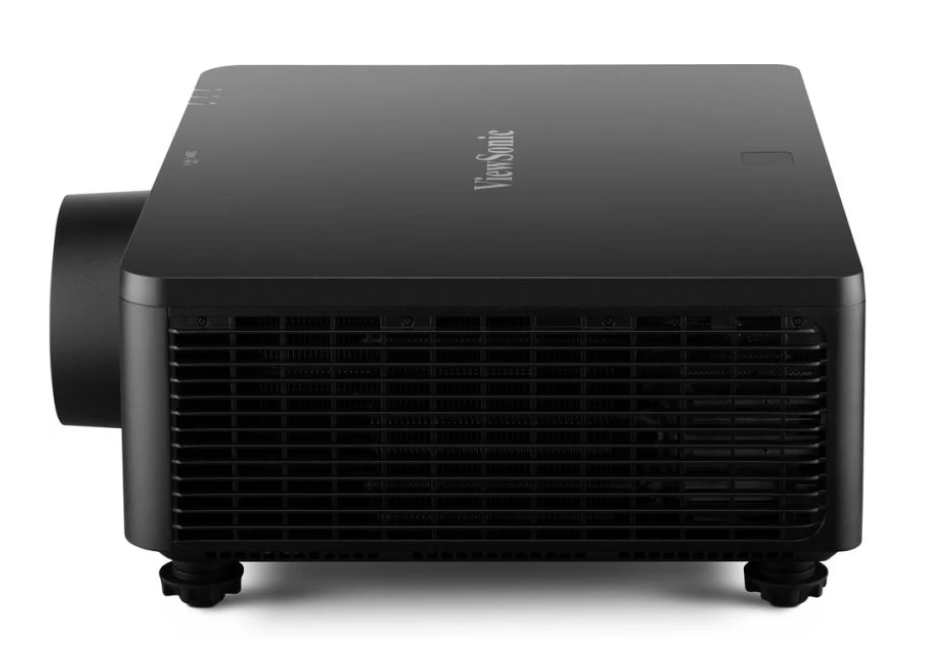

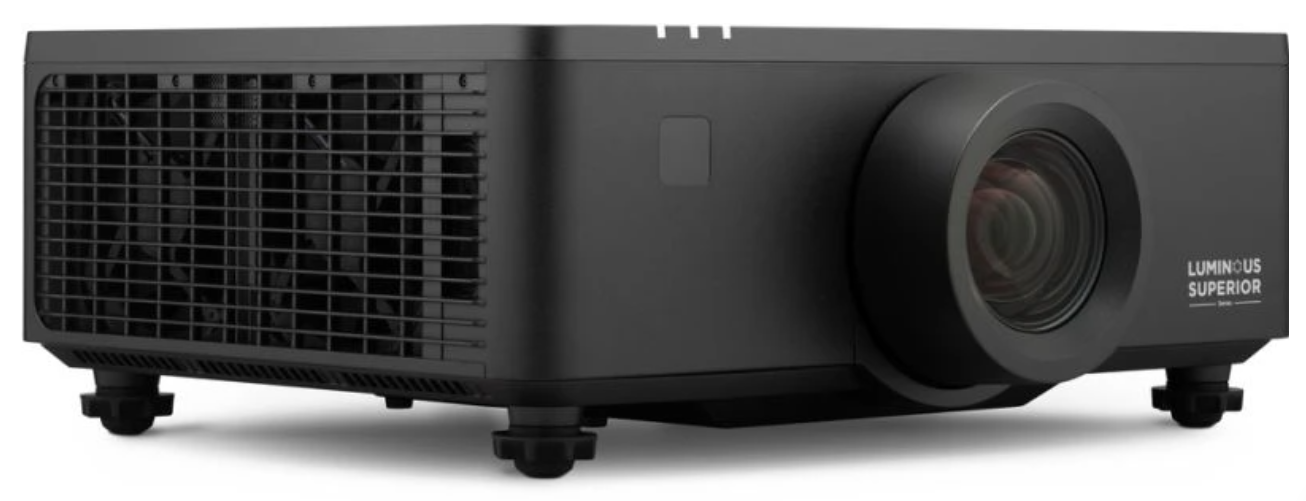

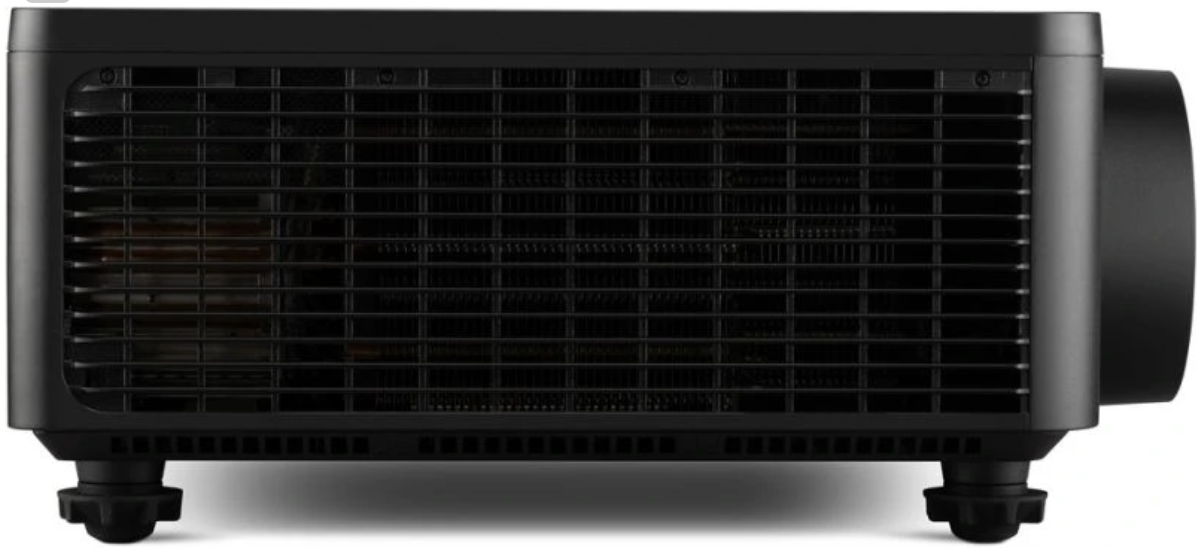

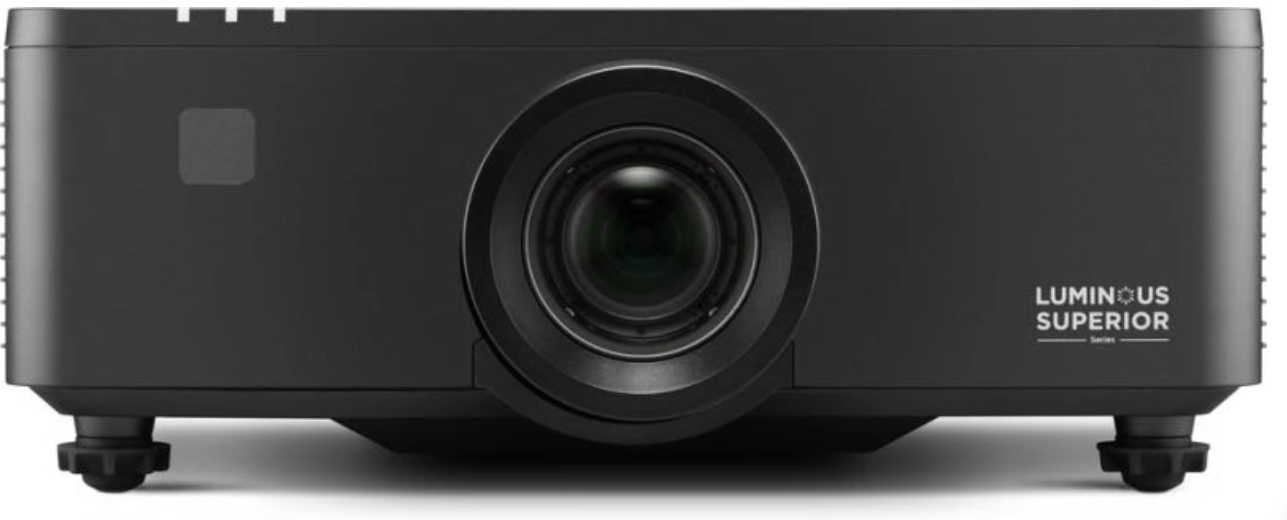

LS950-4K
7,100 ANSI Lumens 4K HDR Laser Installation Projector
- 7,100 ANSI Lumens with a high native contrast ratio ensure vibrant images in large venues
- True 4K HDR delivers exceptional image clarity and detail

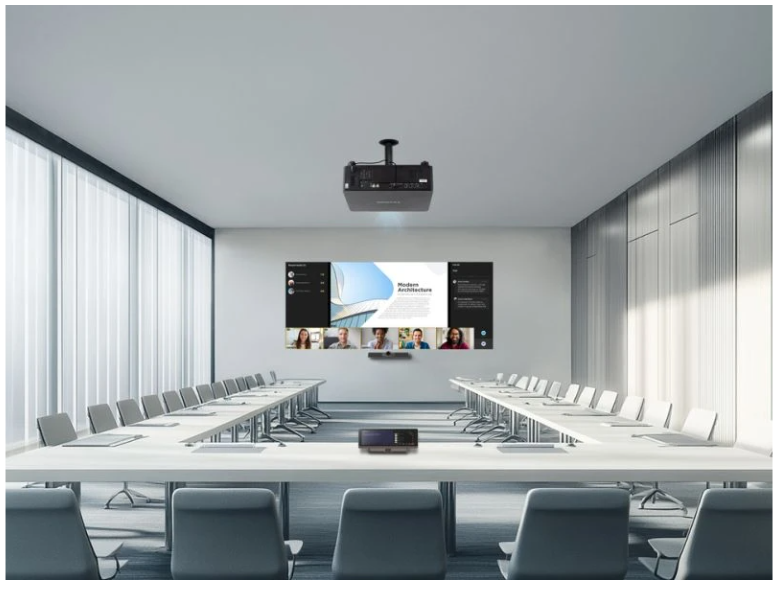

- Supports 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: motorized focus, 1.6x optical zoom, lens shift , H/V keystone correction, and 360° projection
- Centralized LAN control for efficient management
- 3rd generation laser phosphor technology with up to 30,000-hour lifespan
- Specification
Projection System: 0.65″ 4K-UHD
Native Resolution: 3840×2160
Brightness: 7100 (ANSI Lumens)
Brightness (Center Lumens): 7300
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000
Lens: F=2.0-2.1, f=18.54-29.35mm
Projection Offset: 0%±10%
Throw Ratio: 1.25-2.00
Optical Zoom: 1.6X
Digital Zoom: 0.8x-1.8x
Image Size: 50″- 300″
Throw Distance: 1.36-13.42m
(100″@2.78m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +55%, -55%
Lens Shift H. Range: +25%, -25%
Audible Noise (Normal): 34dB
Audible Noise (Eco): 32dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
HDTV Compatibility: 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K- 135KHz

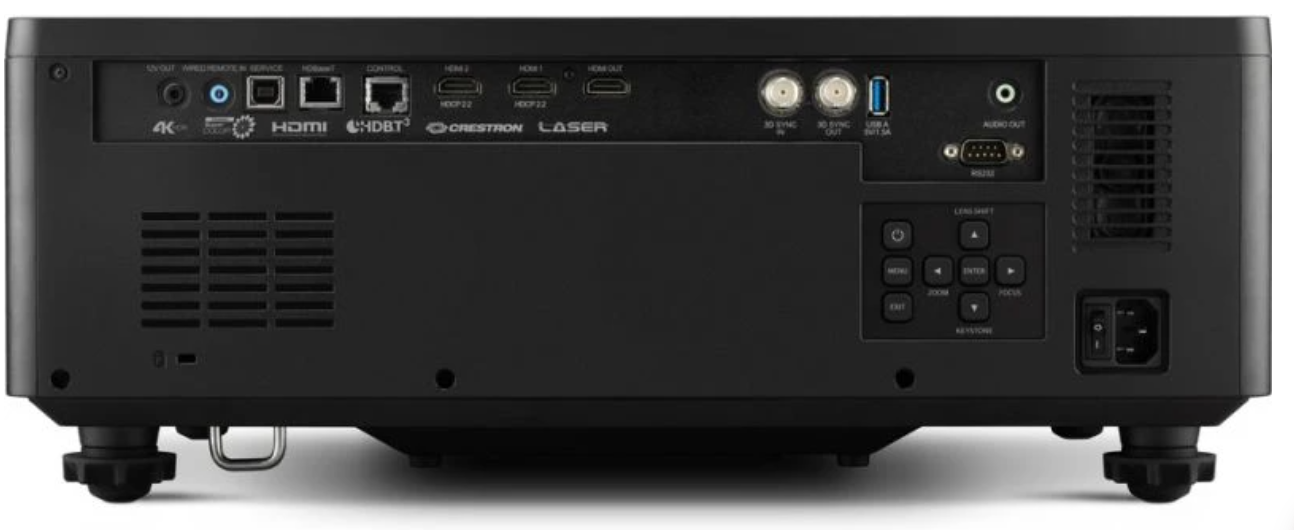

Vertical Scan Rate: 23- 240Hz - Input

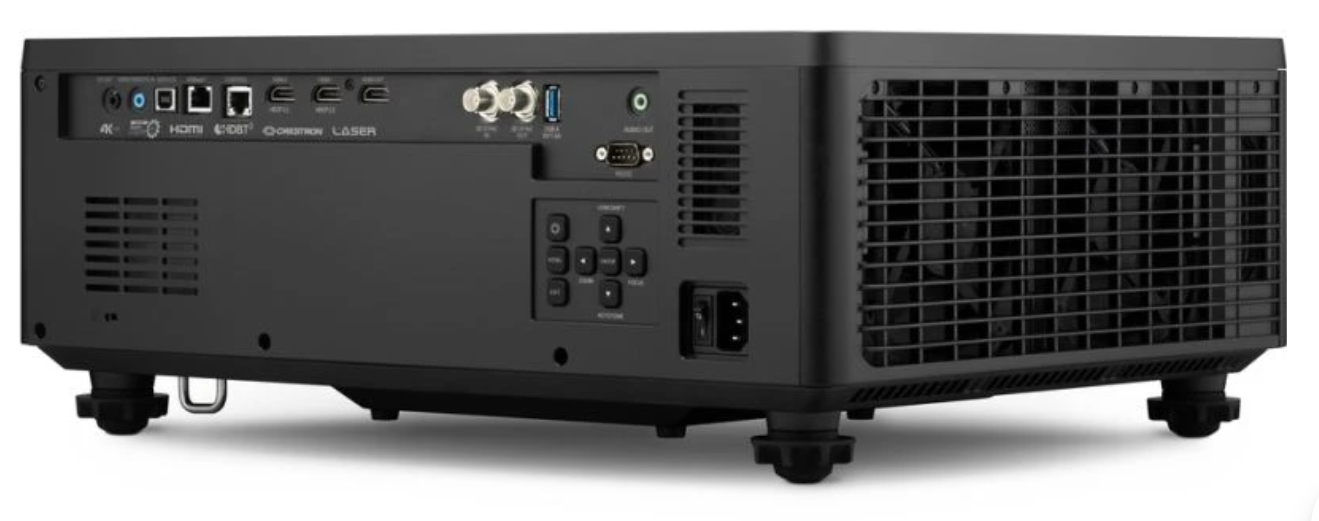

HDMI: 2
(HDMI 2.0/ HDCP 1.4/2.2)
3D VESA (Sync): 1 (BNC)
HDBaseT: 1
IR In: 1 - Output
HDMI out: 1
Audio-out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/1.5A)
12V Trigger (3.5mm): 1
3D SYNC Out: 1
- Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1
Wired Remote Control – In: 1 (share with IR in) - Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 450W
Standby: <0.5W
Operating Temperature: 5~40℃
Carton: Brown
Net Weight: 14.1kg
Gross Weight: 18.8kg
Dimensions (WxDxH) with Adjustment Foot: 486X433X186mm
Packing Dimensions: 654x563x373mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Vietnamese, Greek, Hungarian, Danish, Norwegian. Total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory
Power Cord: 1

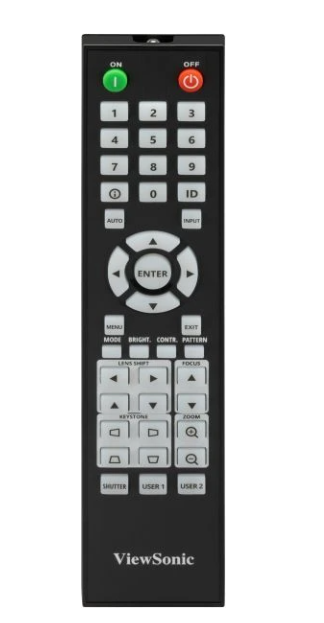

Remote Control: 1
(w/ backlit)
QSG: Yes
Warranty Card: Yes (CN Only)
