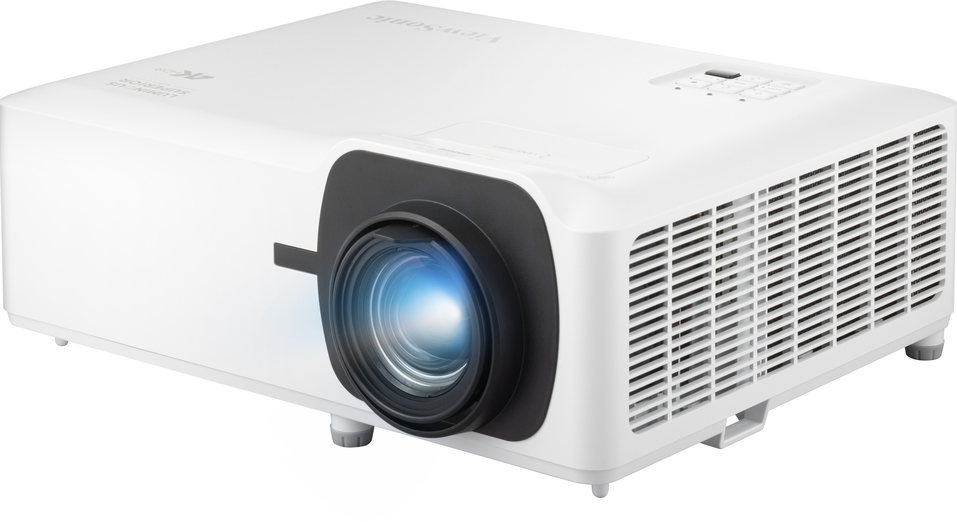

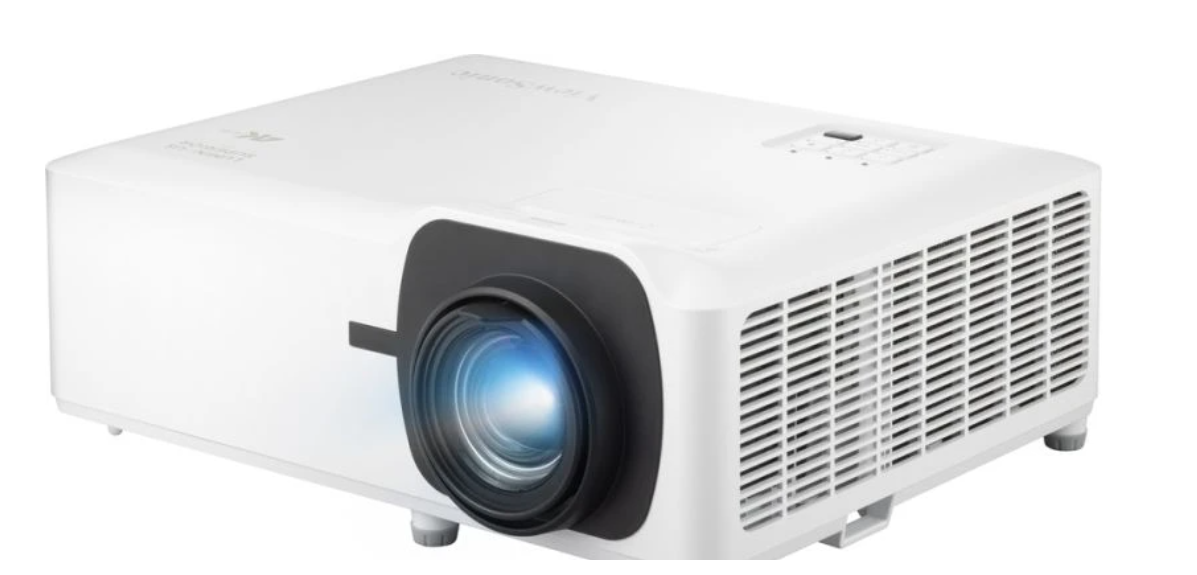

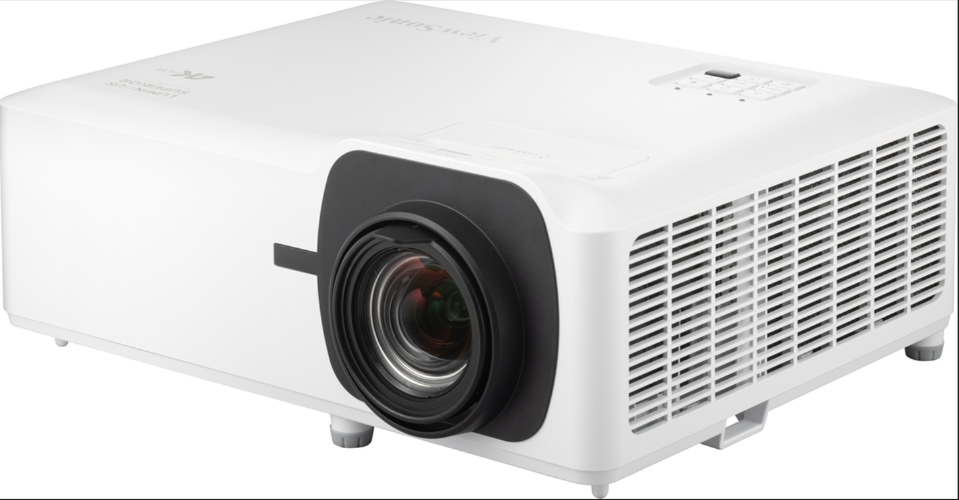

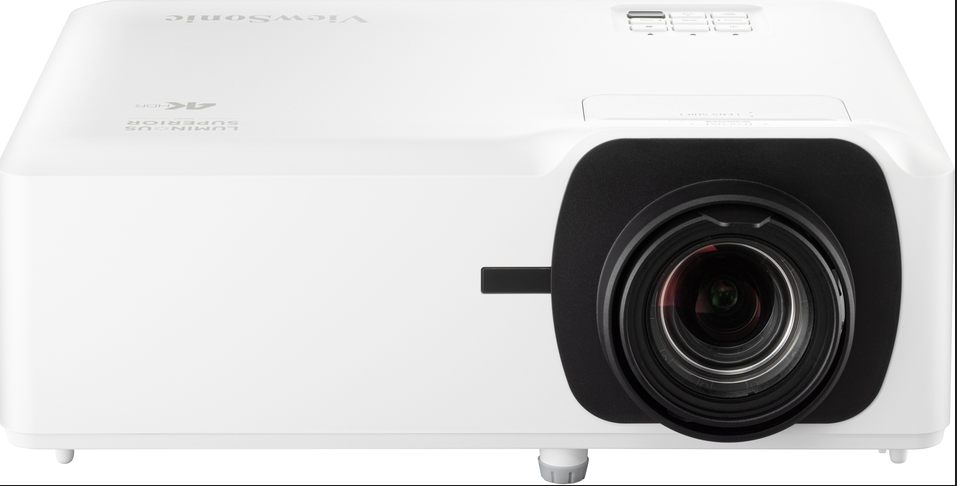

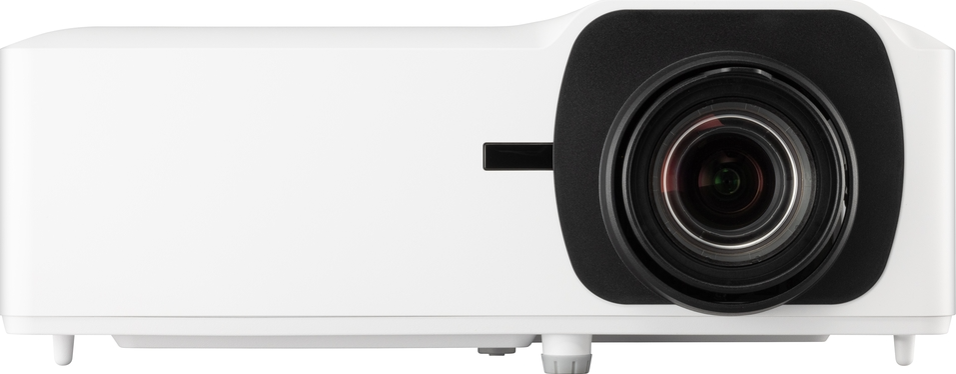

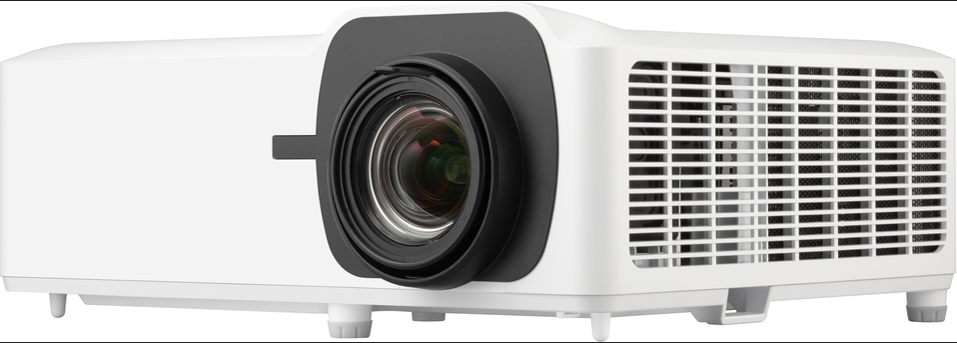

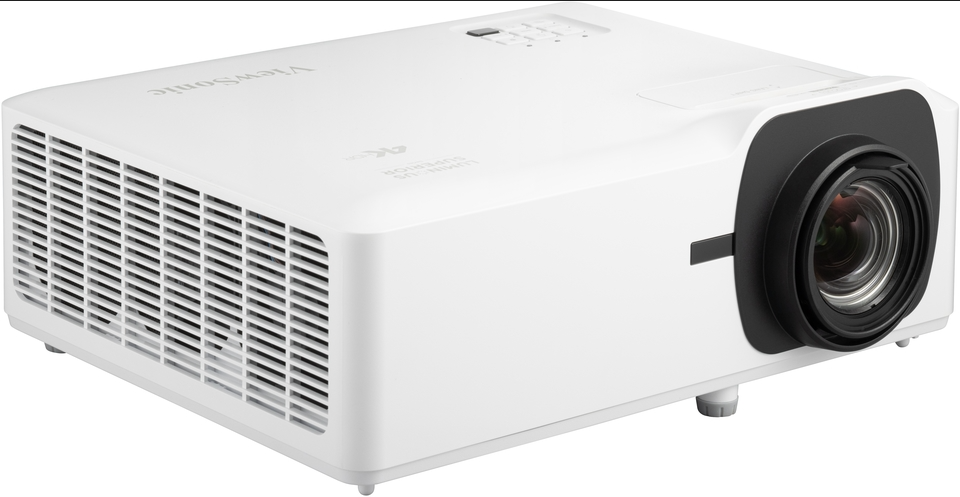

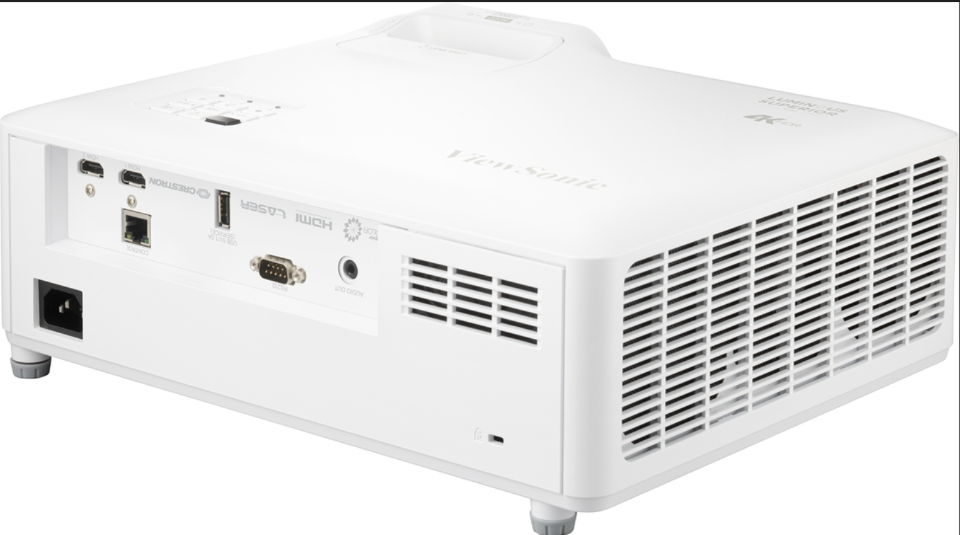

LS901-4K

Bright 5,000 lumens WXGA laser projector designed for professional installation and large venues.

True 4K HDR delivers exceptional image clarity and detail
Clear visuals with 5,500 ANSI Lumens and high native contrast ratio provided by a 0.65” DMD chip
Supports 21:9 aspect ratio, ideal for Microsoft Teams Rooms

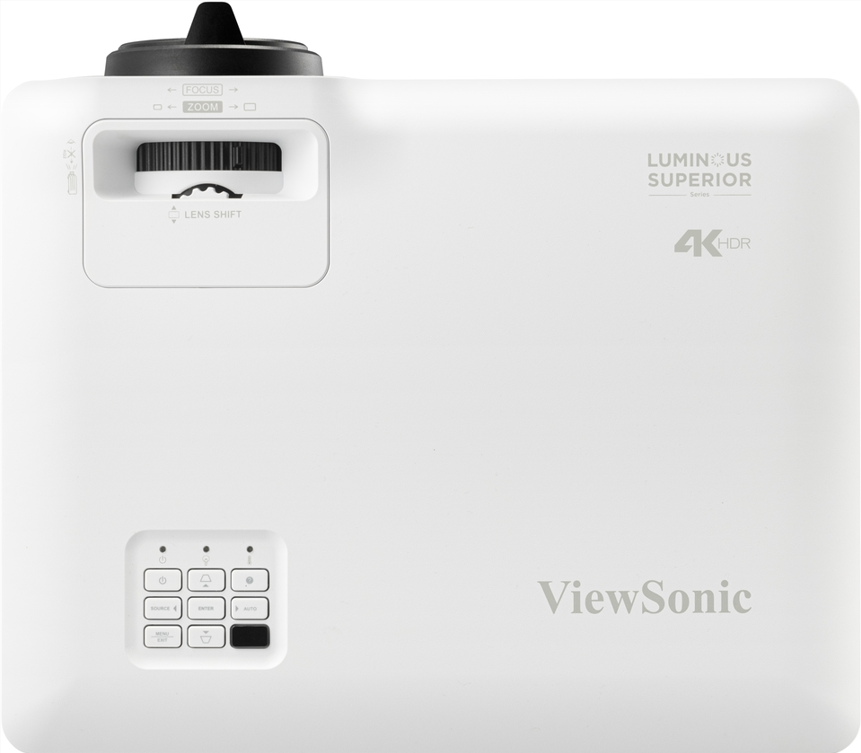

Installation flexibility: 1.7x zoom, V lens shift, H/V keystone correction, and 360° projection
Centralized LAN control for efficient management
3rd generation laser phosphor technology with up to 30,000-hour lifespan

Specification

Projection System: 0.65″ 4K UHD
Native Resolution: 3840×2160
Brightness: 5500 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.3-3.0, f=17.63-27.9mm
Projection Offset: 154% +/- 10%
Throw Ratio: 1.2-2.04
Optical Zoom: 1.7X
Digital Zoom: 0.8x-2.0x
Image Size: 30″-300″
Throw Distance: 0.80-13.55m
(100”@2.66m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: 0%, -21%
Audible Noise (Normal): 31dB
Audible Noise (Eco): 25dB
Input Lag: 4.2ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-255KHz
Vertical Scan Rate: 23-240Hz

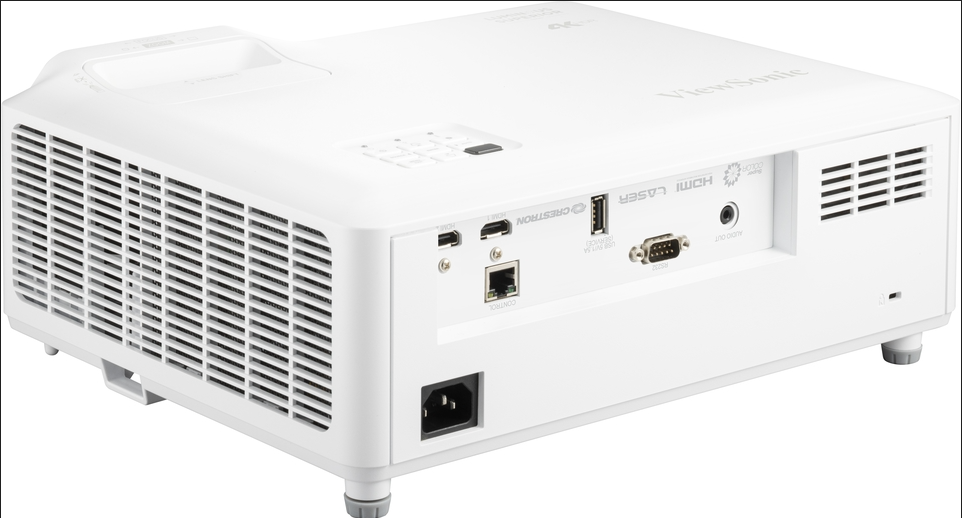

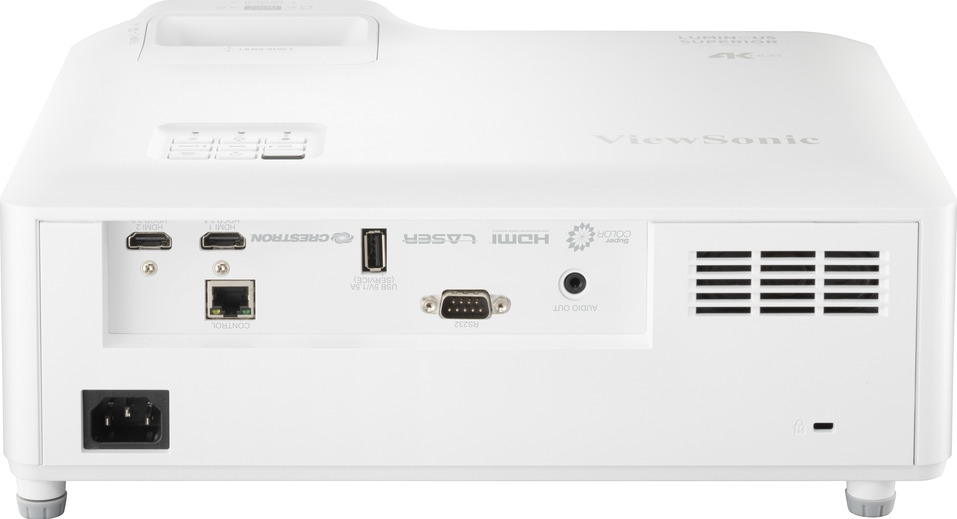

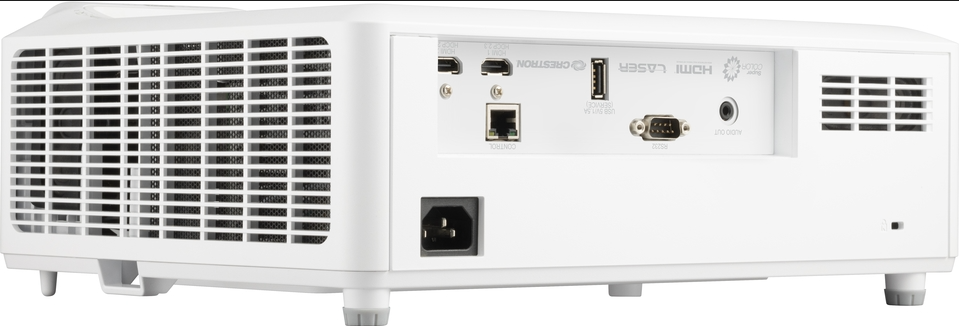

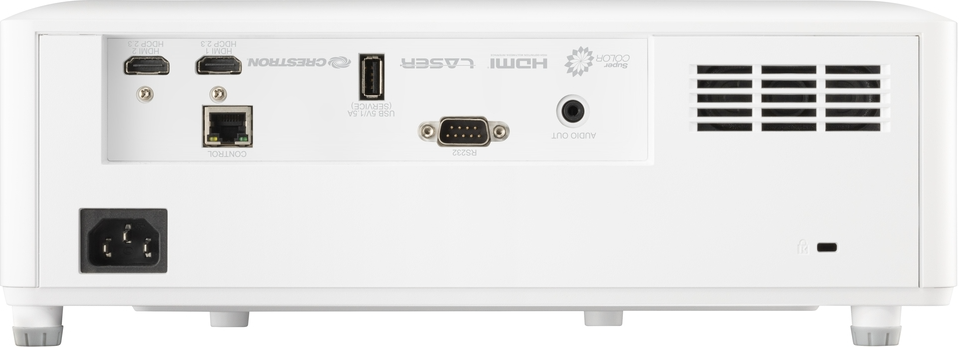

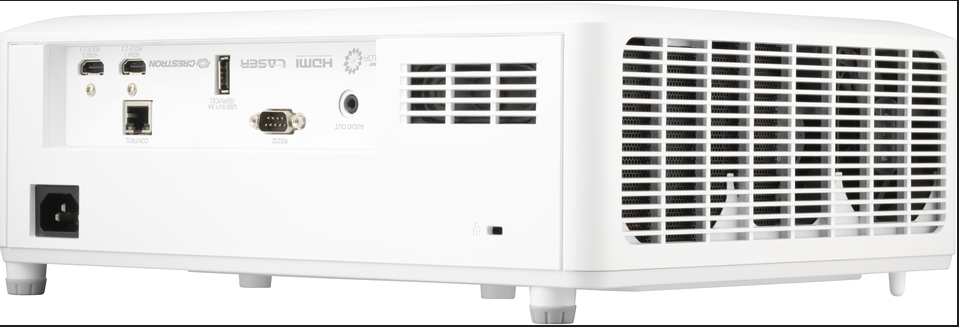

Input

HDMI: 2
(HDMI 2.0/ HDCP 2.3)

Output

Audio-out (3.5mm): 1
Speaker: 15W x2
USB Type A (Power): 1 (5V/1.5A)
