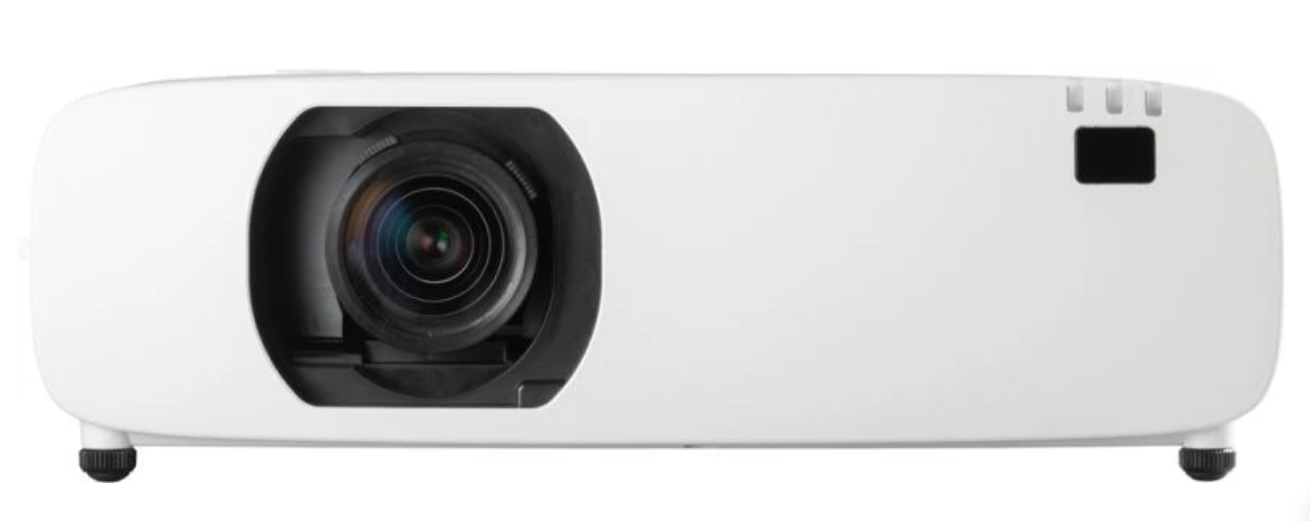

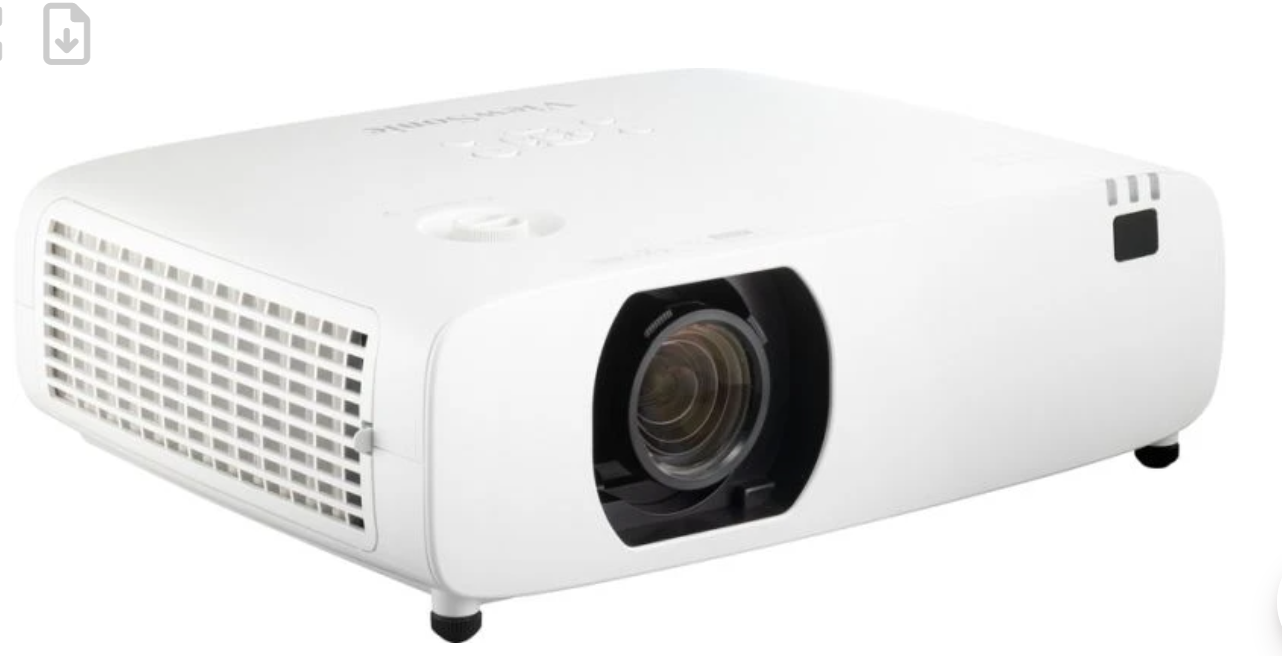

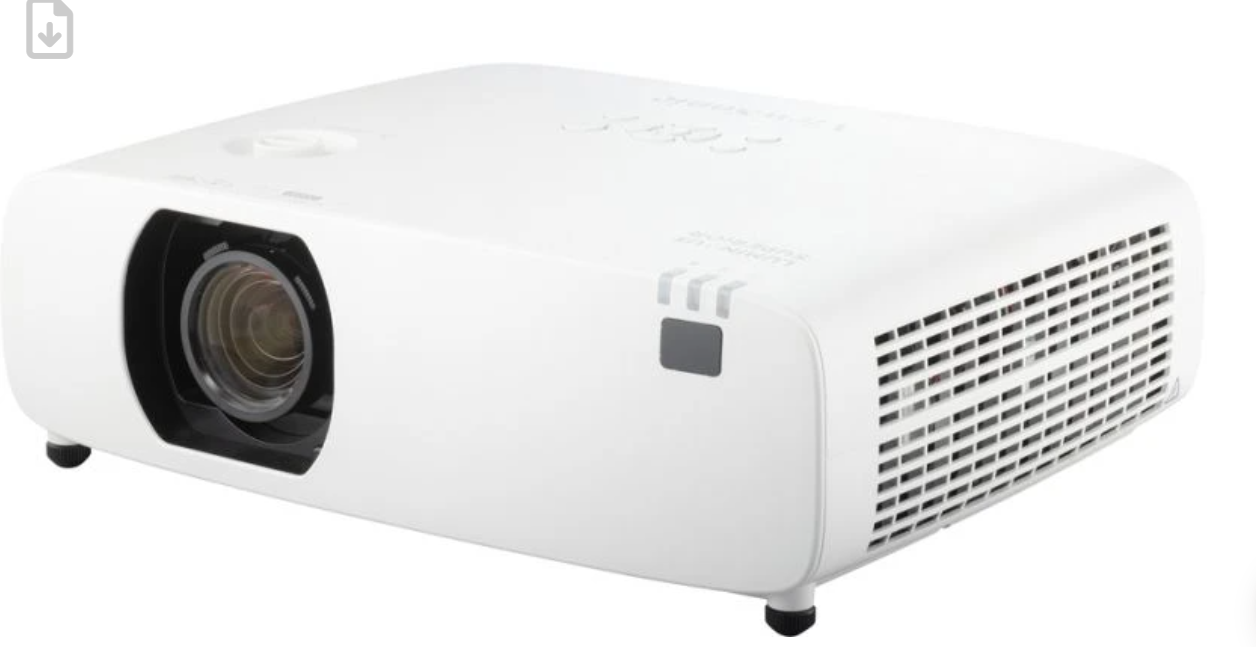

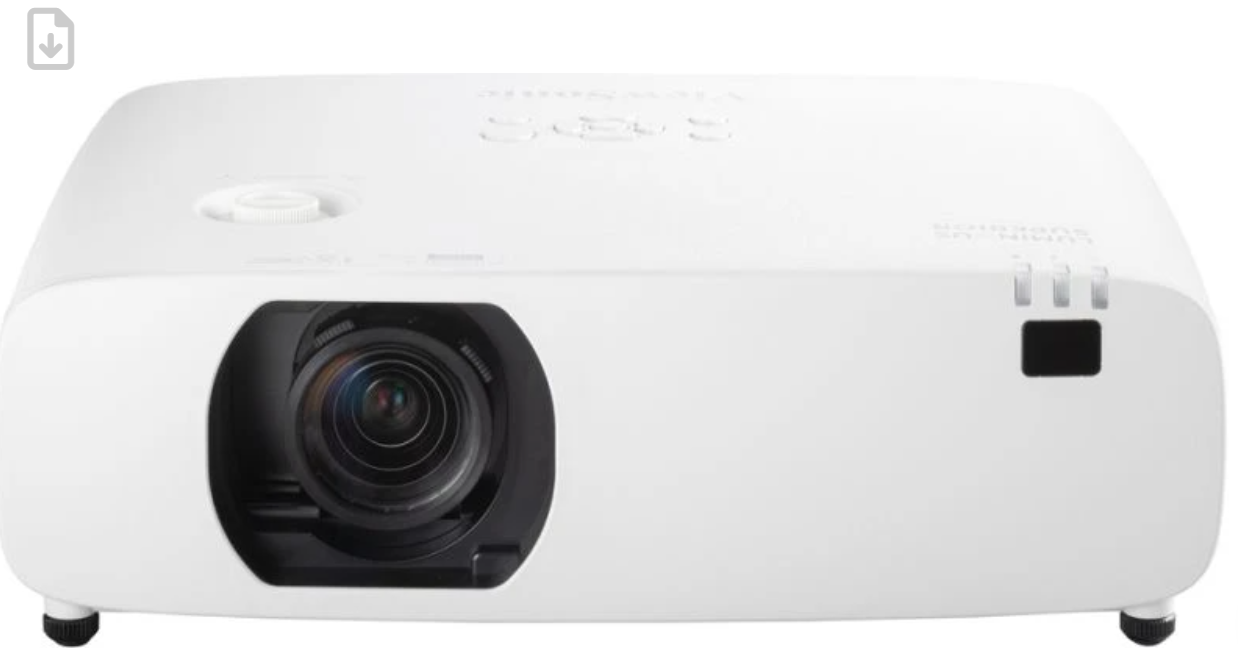

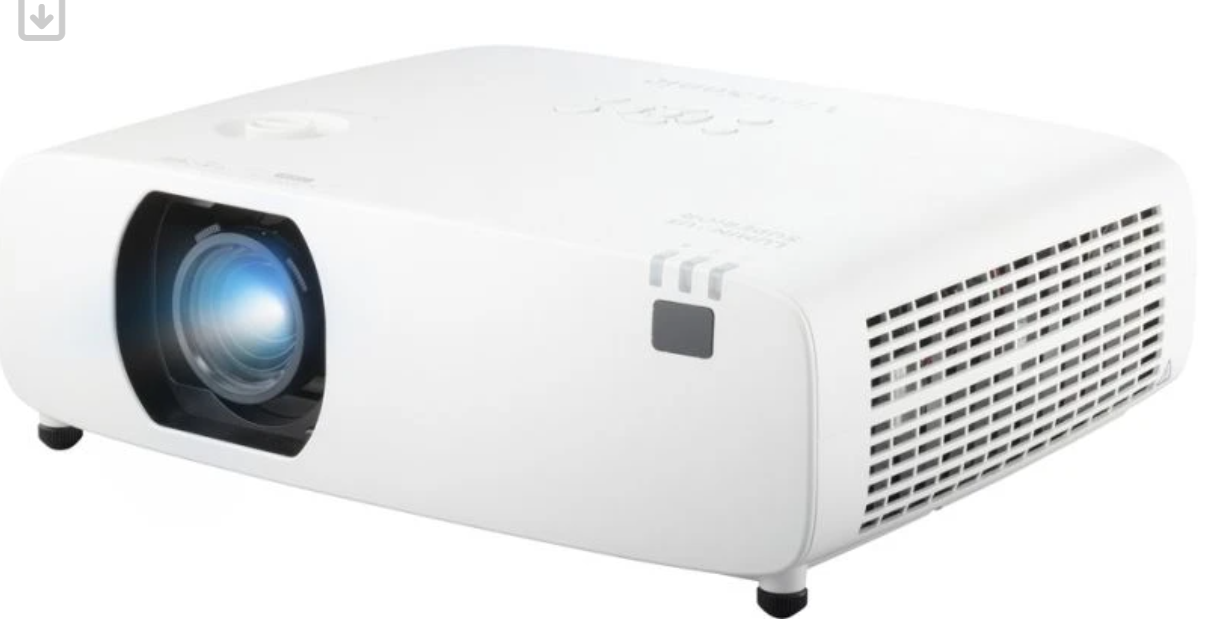

LSC520WU
5,200 ANSI Lumens WUXGA Laser Installation Projector
- 5,200 ANSI Lumens offering bright images in any environment
- Up to a 300″ ultra-large screen with a lower cost-per-inch

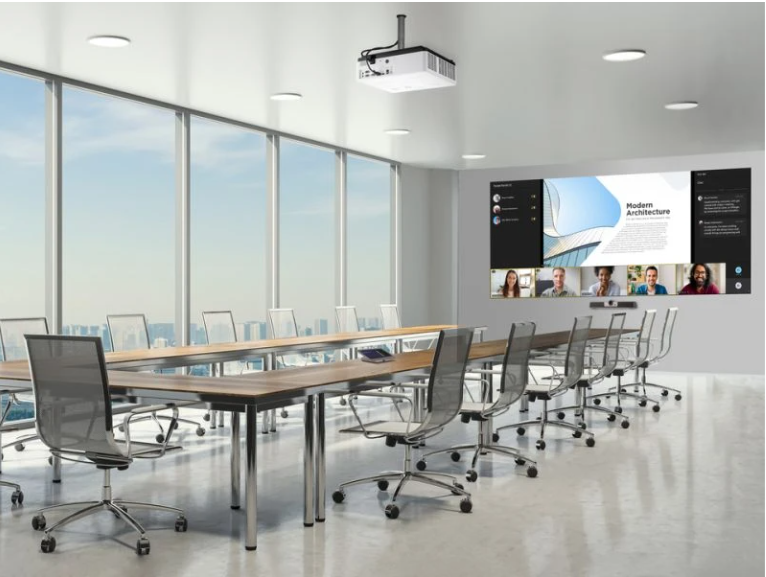

- Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms

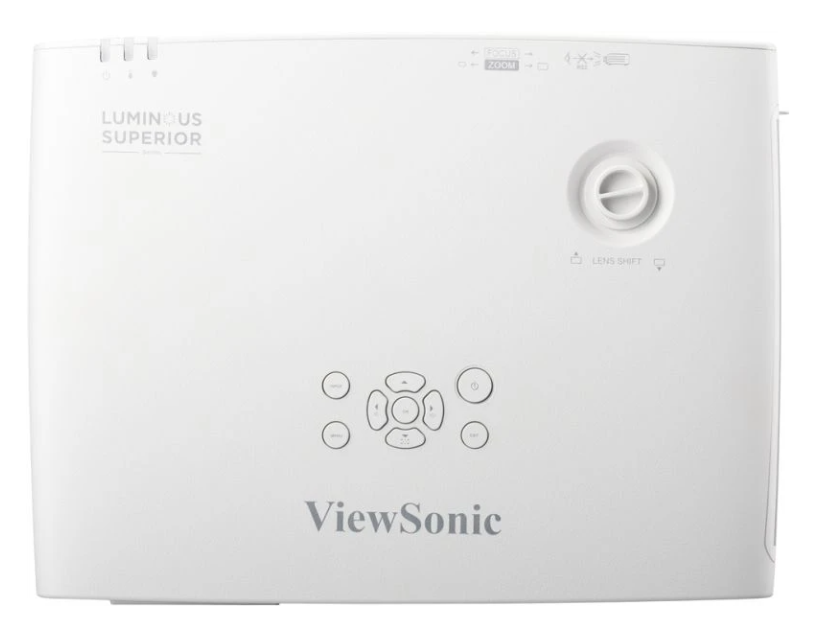

- Installation flexibility: V lens shift, 1.6x optical zoom, and H/V keystone correction
- 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
- Centralized LAN control for efficient management
- Specification
Projection System: 3LCD (3×0.64″ with MLA)
Native Resolution: 1920×1200
Brightness: 5200 (ANSI Lumens)
Brightness (Center Lumens): 6000
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=1.58-2.02, f=15.3-24.6mm
Projection Offset: 0%+/-5%
Throw Ratio: 1.08-1.76
Optical Zoom: 1.6X
Digital Zoom: 1.0x-4.0x
Image Size: 30″-300″
Throw Distance: 0.70-11.37m
(100″@2.33m)
Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: +45%, 0%
Audible Noise (Normal): 35dB
Audible Noise (Eco): 26dB
Input Lag: 60ms
Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@30Hz)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
Horizontal Frequency: 15K-100KHz
Vertical Scan Rate: 23-85Hz - Input

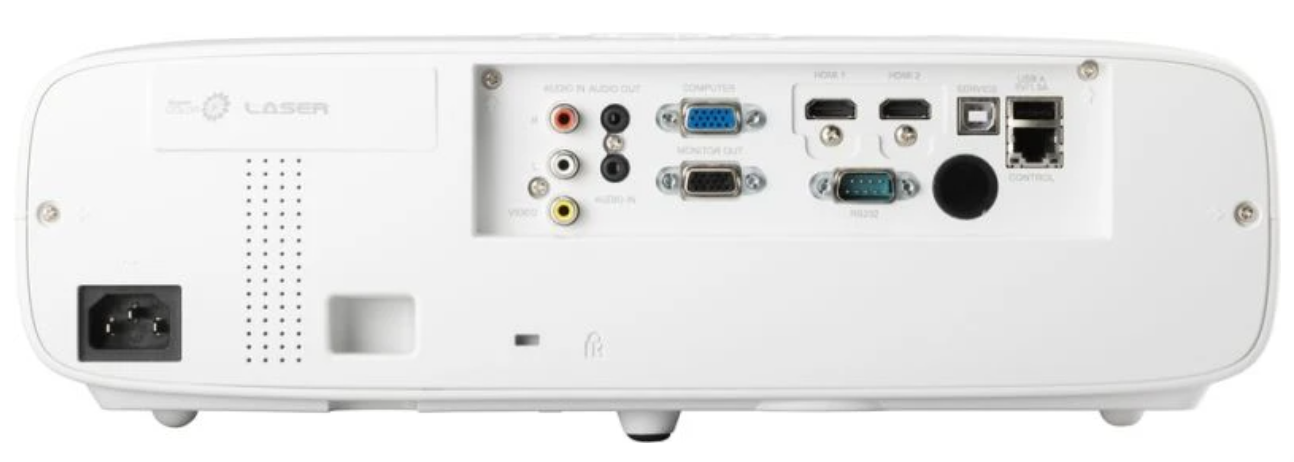

Computer in (share with component): 1
Composite: 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
USB Type A: 1 (5V/1.5A) - Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1
(USB2.0 – 5V/1.5A,
share with USB A Input)
- Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type B (Services): 1 - Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 230W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 5.2kg
Gross Weight: 7.23kg
Dimensions (WxDxH) with Adjustment Foot: 390x294x128mm
Packing Dimensions: 492x443x239mm
OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian,Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory
Power Cord: 1

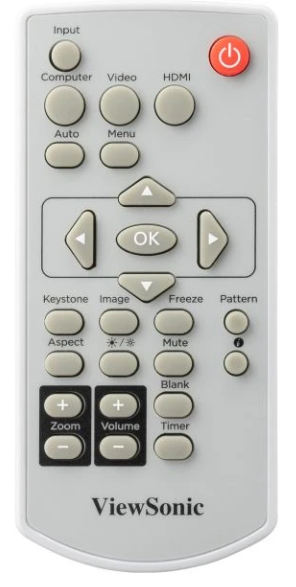

Remote Control: 1
QSG: Yes
Air Filter: Yes
Warranty Card: Yes (CN Only) - Optional Accessory
Air Filter: Yes
Wall/Ceiling Mount: PJ-WMK-007
