Description

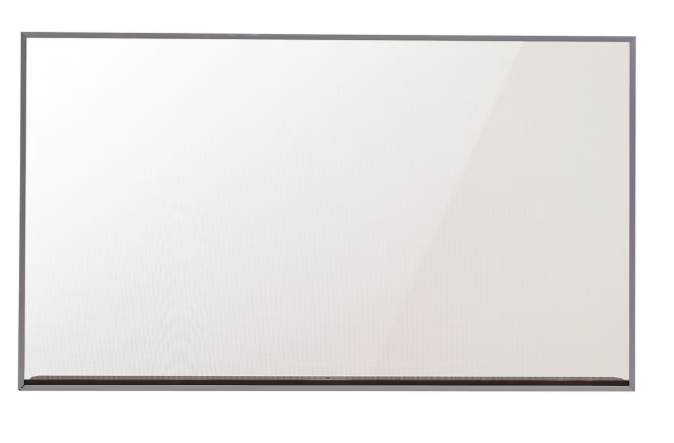

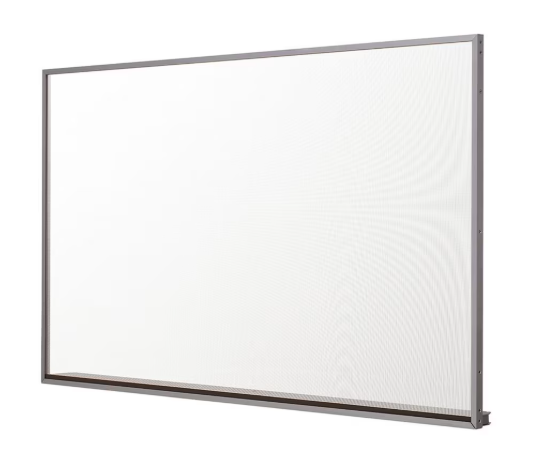

Plan a transparent OLED display
Tell us the display purpose, background objects, lighting and viewing distance. For commercial signage, include content-management needs, daily operating hours and mounting plans. The precise model, specifications and suitability for your installation will be confirmed in the quotation.
AV enquiries across Jharkhand and West Bengal
Enquiries are welcome from individuals, homes, businesses, education, healthcare, hospitality, retail, industry, NGOs and government across both entire states. Share quantity, intended use, budget, timeline and delivery PIN code. Exact model specifications, sourcing, availability, compatibility, accessories, delivery and installation feasibility are confirmed for each requirement.
Product enquiry on WhatsApp | Call 87952 51777 | Request an AV quotation
Key Features
- Resolution : 1,920 × 1,080 (FHD)
- Brightness : 200 / 600 nit (APL 100% / 25%, without Glass)
- Transparency : 43% (Set)
- Bezel Width : Even 12.2mm (T/R/L/B)
All Spec
PANEL
-
Screen Size
139.7 cm (55)
-
Panel Technology
OLED
-
Back Light Type
OLED
-
Aspect Ratio
16:9
-
Native Resolution
1920 x 1080 (FHD)
-
Refresh Rate
120 Hz
-
Brightness
200/600 nit (APL 100%/25%, Without Glass)
-
Contrast Ratio
200,000 : 1
-
Color Gamut
DCI 90%, BT709 110%
-
Viewing Angle (H x V)
178 x 178
-
Color Depth (Number of Colors)
10bit(R), 1.07Bilion colors
-
Response Time
0.1 ms (G to G), 8 ms (MPRT)
-
Surface Treatment (Haze)
Haze 3% (SET), Hard coating (1H)
-
Life time
30,000 Hrs (Typ.)
-
Operation Hours (Hours/Day)
18/7 (Moving Content Only)
-
Portait / Landscape
Yes / Yes
-
Transparency
43% (SET)
CONNECTIVITY
-
HDMI In
Yes (1)
-
HDMI In (HDCP Ver.)
HDCP 2.2/1.4
-
DP In
Yes (1), HDCP1.3
-
RS232C In
Yes (1)
-
RJ45(LAN) In
Yes (1)
-
IR In
Yes (1), External IR Receiver
-
USB In
USB2.0 Type A(2)
-
RS232C Out
Yes (1)
-
RJ45(LAN) Out
Yes (1)
-
IR Out
Sharing RS232C Out
-
Daisy Chain
Input HDMI, DP / Output DP
MECHANICAL SPECIFICATION
-
Bezel Color
Transparent
-
Bezel Width
T/R/L/B : Even 12.2 mm
-
Weight (Head)
14.1kg (Head), 2.6 kg (Signage Box)
-
Packed Weight
30.0 kg
-
Monitor Dimensions (W x H x D)
1237.6 x 717.9 x 86.5 mm (Head) 381.6 x 217.6 x 42.8 (Signage Box)
-
Carton Dimensions (W x H x D)
1368 x 245 x 957 mm
PROTECTION GLASS
-
Thickness
3.0 mm
-
Tempered / Chemical strengthening
Chemical strengthening
-
Anti-Reflective
Yes (Film)
-
Shatter-Proof
Yes
FEATURE – HARDWARE
-
Internal Memory (eMMC)
16 GB
-
Temperature Sensor
Yes
FEATURE – SOFTWARE
-
OS Ver. (webOS)
webOS 23
-
Local Contents Scheduling
Yes
-
Group Manager
Yes
-
USB Plug & Play
Yes
-
Fail Over
Yes
-
RS232C Sync
Yes
-
Local Network Sync
Yes
-
Video Tag
Yes (4)
-
Screen Rotation
Yes
-
External Input Rotation
Yes
-
Gapless Playback
Yes
-
Tile Mode Setting
Yes
-
Setting Data Cloning
Yes
-
SNMP
Yes
-
ISM Method
Yes
-
Auto Set ID
Yes
-
Status Mailing
Yes
-
Control Manager
Yes
-
PM mode
Yes
-
Wake on LAN
Yes
-
HDMI-CEC
Yes
-
SI Server Setting
Yes
-
Scan Inversion
Yes
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
Built-In Power
-
Power Type
95 W
POWER CONSUMPTION
-
BTU (British Thermal Unit)
27.84BTU/Hr(Typ.), 51.29BTU/Hr(Max.)
-
DPM
0.5 W
-
Power off
0.5 W
-
Max.
175 W
-
Typ.
95 W
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class “A” / CE / KC
-
ERP / Energy Star
Yes / No
SOFTWARE COMPATIBILITY
-
SuperSign CMS
Yes
-
SuperSign Control+
Yes
-
SuperSign Cloud
Yes
-
Mobile CMS
Yes
-
Connected Care
Yes
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
ACCESSORY
-
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000 mmx4ea/3000 mmx2ea) for connection between panel and Signage Box), DP Cable(2 m), LAN Cable(1.5 m), RS232 Cable(4P-4P,1.5 m), LC Cable(VLC,3 m), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5, 20EA), Shield Cover Assy’, Rubber Damper 4EA, MCX cable Holder 4ea, Stand (2 pole)
SPECIAL FEATURE
-
Conformal Coating (Power Board)
Yes
