Description

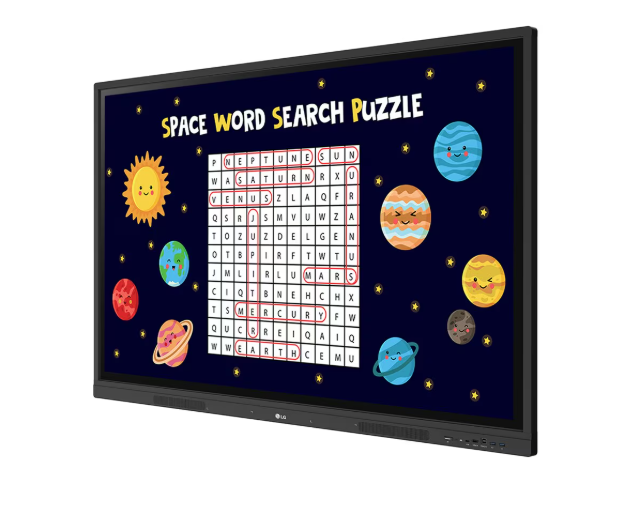

Interactive panel for teaching and collaboration
Considering an LG CreateBoard interactive flat panel or touch-screen digital board? Share your classroom or meeting-room dimensions, number of users, preferred screen size and connected devices. Ask us to confirm the exact model code, touch compatibility, required software and whether a wall mount, floor stand or computer module is included.
AV enquiries across Jharkhand and West Bengal
Dhanbad Sales welcomes enquiries from individuals, businesses, education, healthcare, hospitality, retail, industry, NGOs and government across both entire states. Share your quantity, application, budget and delivery PIN code. Exact model, sourcing, availability, compatibility and installation feasibility are confirmed per enquiry. This listing does not imply LG authorisation.
Enquire about LG CreateBoard on WhatsApp | Call 87952 51777 | Request an AV quotation
All Spec
PANEL
-
Screen Size
190.5 cm (75)
-
Panel Technology
IPS
-
Back Light Type
Direct
-
Aspect Ratio
16:9
-
Native Resolution
3840 x 2160 (UHD)
-
Refresh Rate
60Hz
-
Brightness
440 nits
-
Dynamic CR
5,000:1
-
Color Gamut
NTSC 72%
-
Viewing Angle (H x V)
178º x 178º
-
Color Depth (Number of Colors)
16.7 Million colors
-
Response Time
8ms (G to G)
-
Surface Treatment (Haze)
Haze 25%
-
Operation Hours (Hours/Day)
16/7
-
Portait / Landscape
NO / YES
CONNECTIVITY
-
HDMI In
YES (3ea)
-
HDMI In (HDCP Ver.)
2.2
-
RGB In
YES
-
Audio In
YES
-
RS232C In
YES
-
RJ45(LAN) In
YES (1ea)
-
USB In
USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
-
HDMI Out
YES
-
Audio Out
YES
-
Touch USB
USB2.0 Type B (2ea)
-
RJ45(LAN) Out
YES
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
T/R/L/B : 15/15/15/44mm
-
Weight (Head)
47.3Kg
-
Packed Weight
60.6Kg
-
Monitor Dimensions (W x H x D)
1709 × 1020 × 88mm
-
VESA Standard Mount Interface
800 x 400 mm
-
Carton Dimensions (W x H x D)
1863 × 1140 × 225mm
FEATURE – HARDWARE
-
Internal Memory (eMMC)
64GB
-
Wi-Fi/BT (Built-in)
YES
-
Auto Brightness Sensor
YES
-
Power Indicator
YES
FEATURE – SOFTWARE
-
Booting Logo Image
YES
-
PIP
YES
-
PBP
YES (2PBP)
-
Screen Share
YES
-
Smart Energy Saving
YES
-
Wake on LAN
YES
ENVIRONMENT CONDITIONS
-
Operation Temperature
0 °C to 40 °C
-
Operation Humidity
10% to 90%
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
POWER CONSUMPTION
-
BTU (British Thermal Unit)
768 BTU/Hr(Typ.), 1467 BTU/Hr(Max.)
-
DPM
0.5W
-
Power off
0.5W
-
Max.
430W
-
Typ.
225W
SOUND
-
Speaker (Built-in)
YES (15W x 2)
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class “A” / CE
-
ERP / Energy Star
YES / YES
OPS COMPATIBILITY
-
OPS Type compatible
YES (Slot)
-
OPS Power Built-in
YES
SOFTWARE COMPATIBILITY
-
Connected Care
YES
LANGUAGE
-
OSD
English, Denmark, Finnish, German, Korean, Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Spanish, Swedish, Hungarian, Thai
ACCESSORY
-
Basic
Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
-
Optional
Wall Mount(WM-L000S), Floor Stand(ST-000F, ST-860F)
SPECIAL FEATURE
-
Conformal Coating (Power Board)
YES
DEDICATED FEATURE – TOUCH
-
Available Object Size for Touch
Ø2 mm ↑
-
Response Time (‘Paint’ app on Windows 10 PC)
5ms ↓
-
Accuracy (Typ.)
±1mm
-
Interface
USB2.0
-
Protection Glass Thickness
3mm (Anti-Glare)
-
Protection Glass Transmission
88%
-
Operating System Support
Windows 7/8/10/Linux/Mac/Android (Linux/Mac Support one point touch)
-
Multi Touch Point
Max. 40 Points(Windows), Max. 32 Points(Android)
DEDICATED FEATURE – CREATE BOARD
-
CPU
Quad core A55
-
GPU
Mail G52 Multicore 2
-
Memory(RAM)
8GB
-
Storage
64GB
-
Wi-Fi
802.11a/b/g/n/ac/ax (WiFi 6)
-
LAN
Gigabit LAN
-
Bluetooth
Bluetooth 5.0
-
OS ver. (Android)
Android 13
